SPECIFICATIONS:

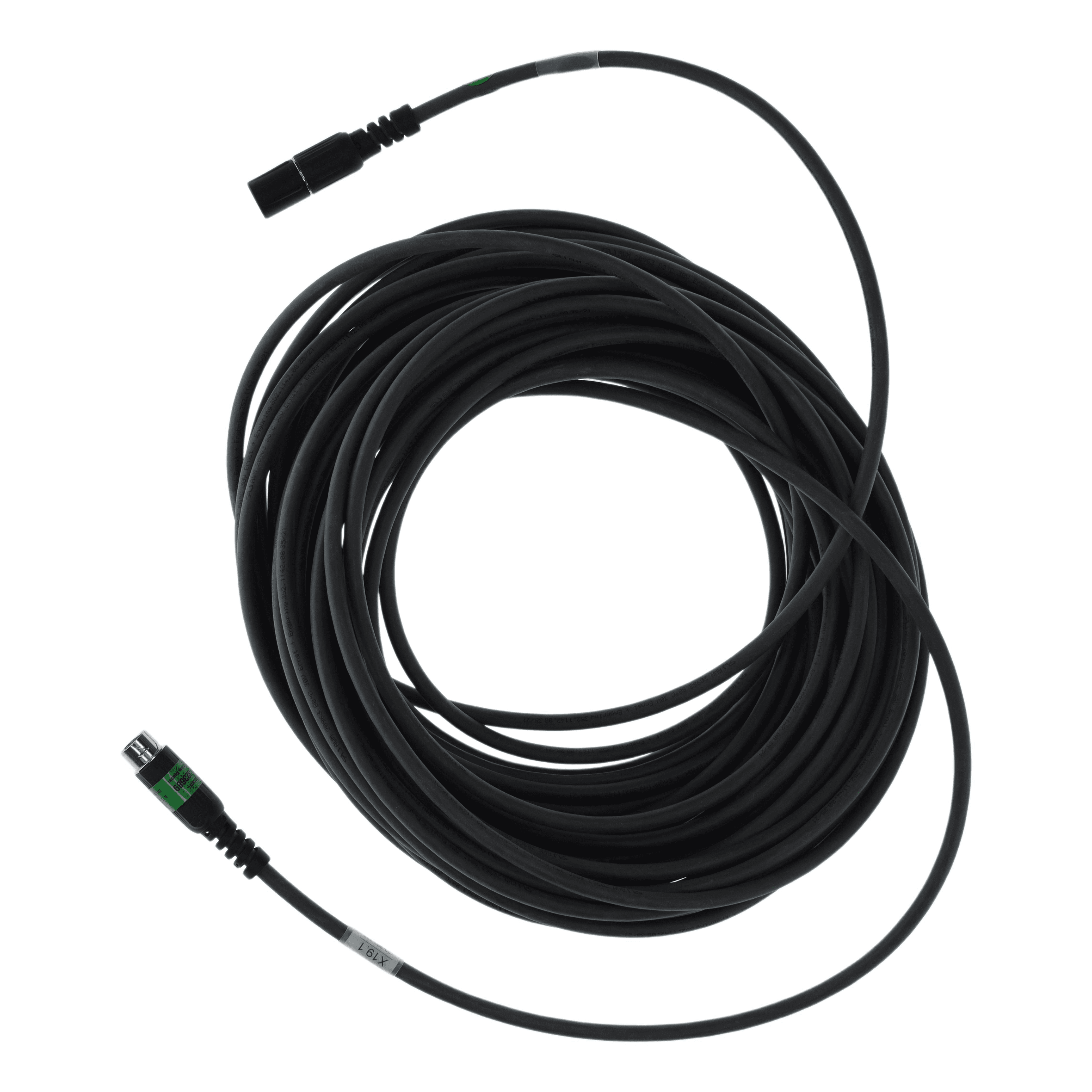

The connecting or extension cable has a plug-in connection at both ends and can be used for all KUKA smartPADs of the corresponding version.
|
Component |
smartPAD extension cable |
|---|---|
|
Installation type |
Suitable for cable carrier |
|
Maximum outer diameter |
8.3 mm |
|
Minimum bending radius |
3x outer diameter, static; 7x outer diameter, dynamic |
|
Length |
25 m |
|
Sheath material |
PUR |
|
UL approval |
true |
|
Oil-resistant |
true |
|
Halogen-free |
true |
|
Flammability |
Flame-retardant |
|
Ambient temperature during operation |
-40 ?C to 80 ?C (233 K to 353 K) |
|
Rated voltage |
30 V/30 V Uo/U acc. to VDE; 30 V acc. to UL/CSA |
Compatible with:? KMP 200 omniMove 314-903 KMP 200 omniMove UL 336-628 KMP 200 omniMove UL IC 346-741 KMP 200 omniMove woRC 355-221 KMR iiwa omniMove 314-904 KMR iiwa omniMove CR 314-906 KMR iiwa omniMove CR UL 336-631 KMR iiwa omniMove CR UL IC 346-744 KMR iiwa omniMove CR woRC 355-224 KMR iiwa omniMove UL 336-629 KMR iiwa omniMove UL IC 346-742 KMR iiwa omniMove woRC 355-222 KR 10 R1100 CR 293-594 KR 10 R1100 EX 384-002 KR 10 R1100 HM-SC 293-598 KR 10 R1100 WP 293-589 KR 10 R1100-2 290-003 KR 10 R1100-2 HO 351-364 KR 10 R900 HM-SC 293-597 KR 10 R900 WP 293-588 KR 10 R900-2 290-002 KR 3 D1200 400-454 KR 3 D1200 HM 283-190 KR 3 D1200-2 HM 368-372 KR 480 R3400-2 391-563 KR 480 R3700-2 391-564 KR 560 R3100-2 391-562 KR 560 R3100-2 HI 399-107 KR 6 R700 CR 293-590 KR 6 R700 HM-SC 293-595 KR 6 R700 WP 293-585 KR 6 R700-2 290-000 KR 6 R900 EX 293-617 KR 6 R900 HM-SC 293-596 KR 6 R900 WP 293-587 KR 6 R900-2 290-001 KR 6 R900-2 HO 384-946 KR 640 R2800-2 391-561 KR 640 R2800-2 HI 399-106 KR 800 R2800-2 391-560 KR 10 R900 CR 293-592 KR 6 R900 CR 293-591 KUKA smartPAD cable reel 338-583 KUKA smartPAD-2 0,3m 312-962 KUKA smartPAD-2 0,3m + 10m 312-963 KUKA smartPAD-2 10m 291-556 KUKA smartPAD-2 10m 312-964
