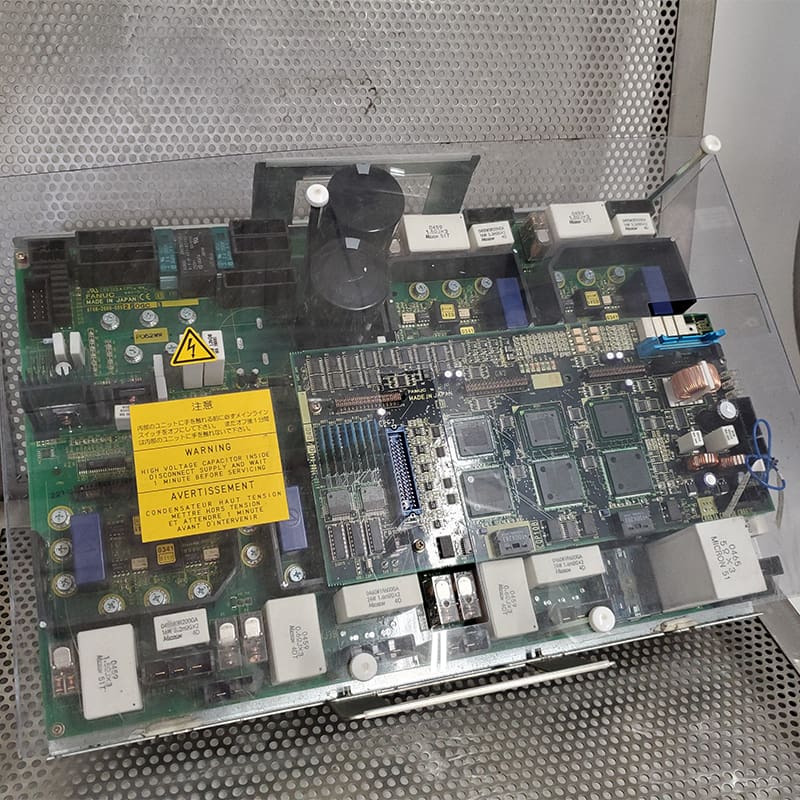

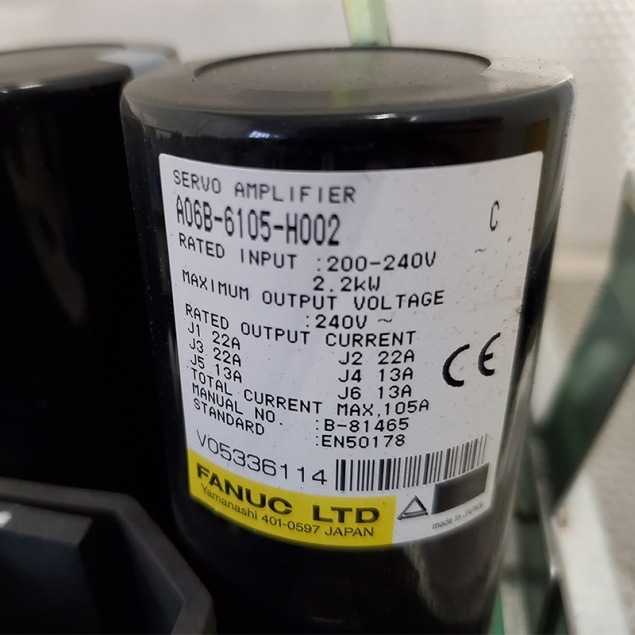

Fanuc A06B-6105-H002 6-Axis Servo Amplifier- RJ3iB

$1,150.00

A06B-6105-H002
6-Axis Servo Amplifier

Unit Includes the Following Parts:

  • Servo Amp Control Circuit Board: A16B-3200-0440
  • Servo Amp Power Circuit Board: A16B-2000-0062
  • 3x Intelligent Power Module: A50L-0001-0330
  • 3x Intelligent Power Module: A50L-0001-0327
  • Diode Module: A50L-2001-0429#B
  • x2 Fuse: A60L-0001-0290#LM32C
  • Fuse: A60L-0001-0290#LM50C
  • x2 Fuse: A60L-0001-0245#GP20
  • x3: Integrated Circuit: A76L-0151-0062
  • CRM68 Jumper Cable: A660-2005-T462
  • CRR63B,CRR63C Jumper Cable: A660-2005-T461

SPECIFICATIONS:

  • For use with Fanuc R-J3iB Controllers
  • Powers the 6-axis servo motors for the following robot models:
    • R-2000iA (except 200T)
    • M-710iB
    • M-420iA, M-421iA
    • M-16iB, M-16iB/10L
    • ARC Mate 120iB
    • S-500iB

CONDITION: USED – TESTED, in GOOD WORKING CONDITION
