SPECIFICATIONS FOR A06B-6400-H005:
- For use with FANUC R-30iB Mate & R-30iB Mate Plus Controllers.
- Powers the 6-axis servo motors for the following Fanuc robot models:
- LR Mate 200iD Series
- LR-10iA
- ARC Mate 50iD
- Paint Mate 200iA Series
- ER-4iA
- M-1iA
- CR-4iA, 7iA, 14iA
- Input Ratings:
- Voltage: AC200~AC240V ( +10% / -15% ), 50/60Hz, 3/1phase
- Power capacity: 1.3/1.4 ( 3/1phase)
- Output Ratings:
- Maximum output 240v to
- Current:J1 20ap / 3.6Arms
- Current:J2 20ap / 3.6Arms
- Current:J3 20ap / 3.6Arms
- Current:J4 20ap / 3.6Arms
- Current:J5 10ap / 2.0Arms
- Current:J6 10ap / 2.0Arms
- Total Current: 18.4Arms

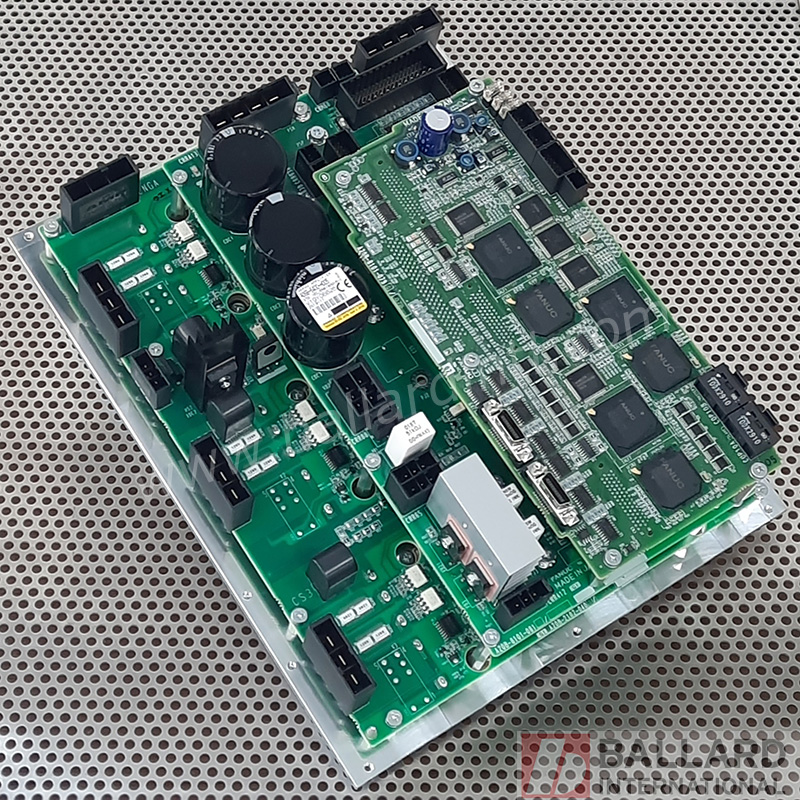

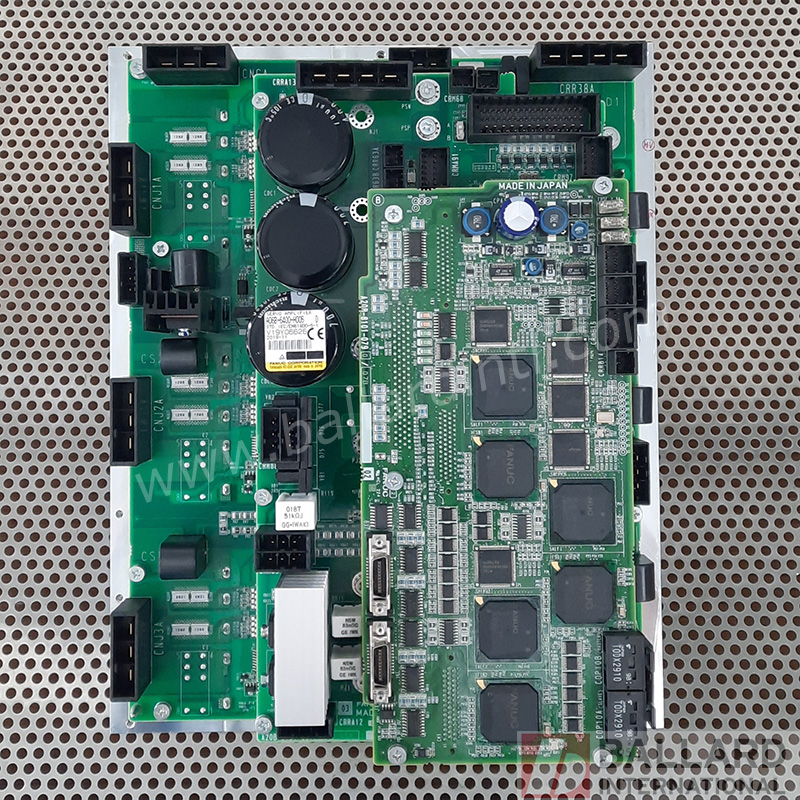

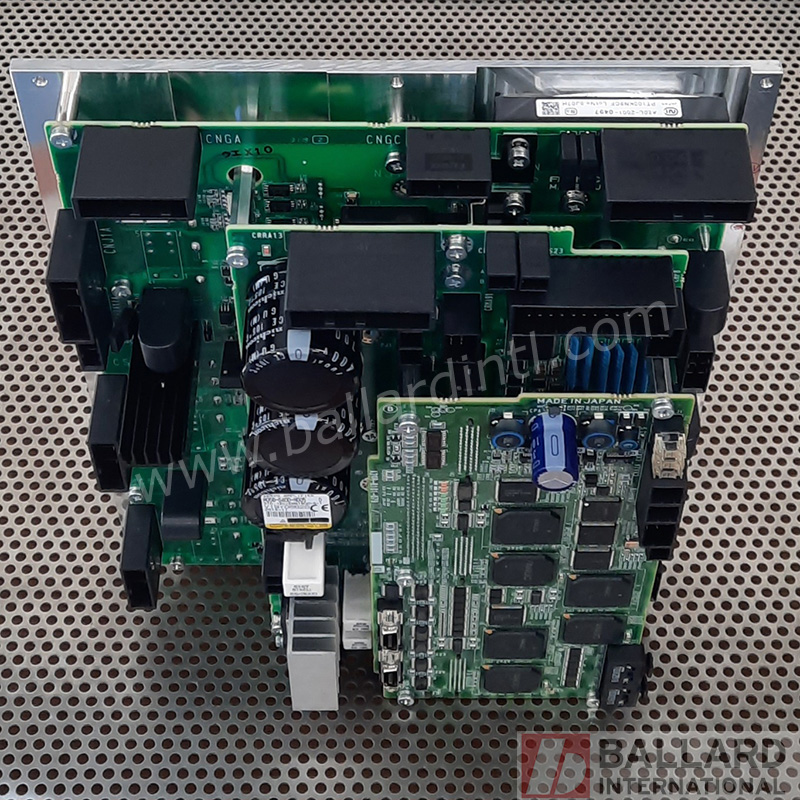

Unit Includes:

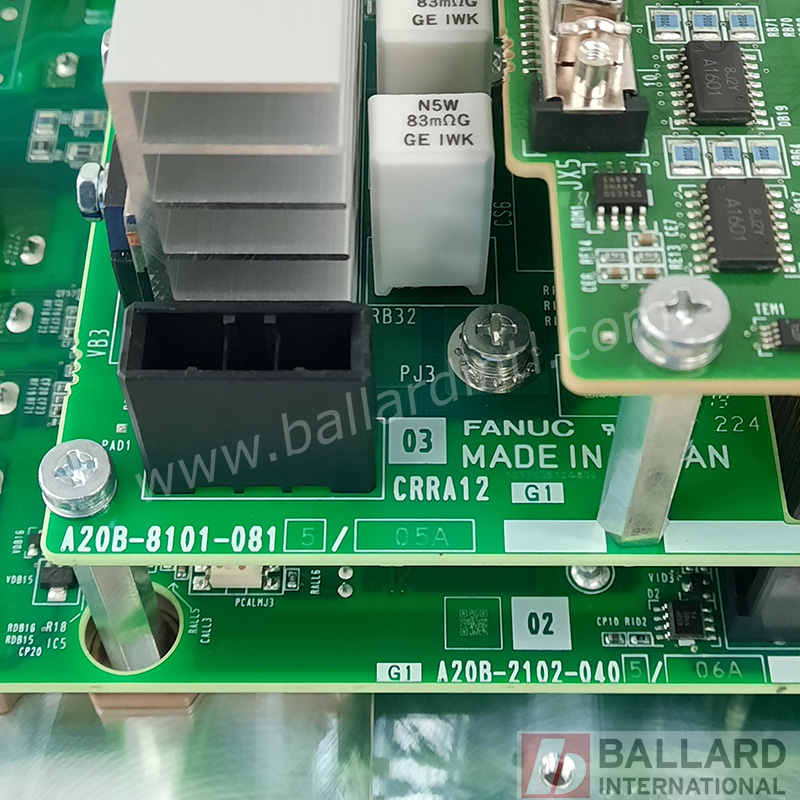

- Servo Amp Control Circuit Board: A20B-8101-0790
- Servo Amp Power Circuit Board: A20B-2102-0405 and A20B-8101-0815
