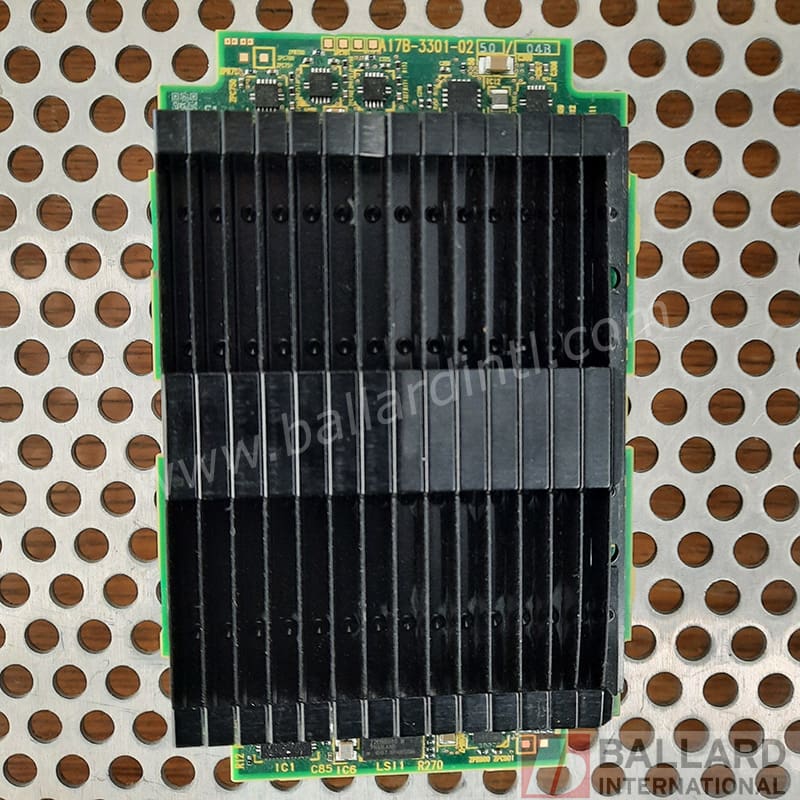

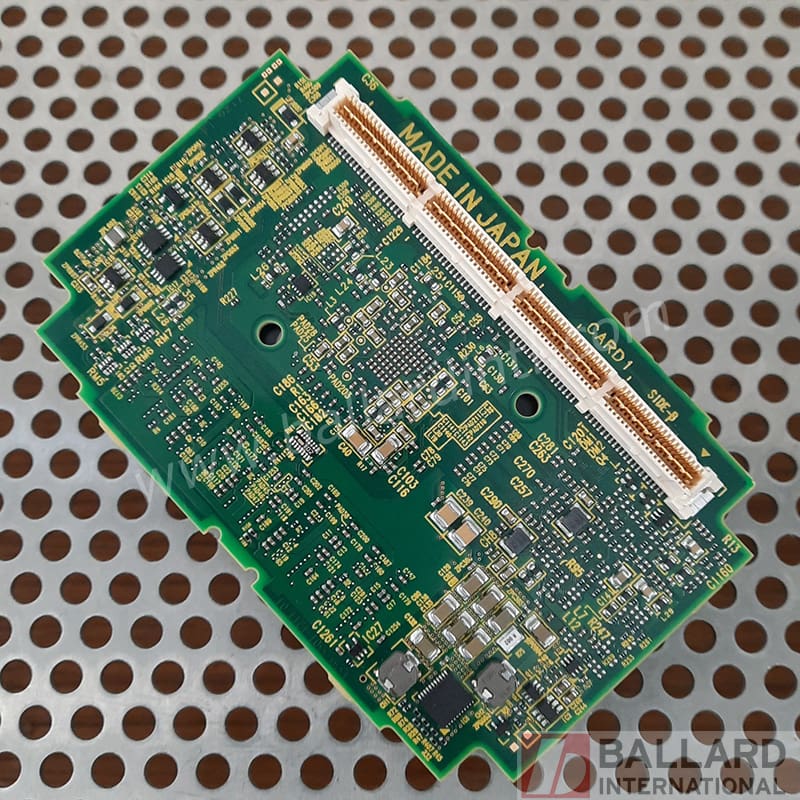

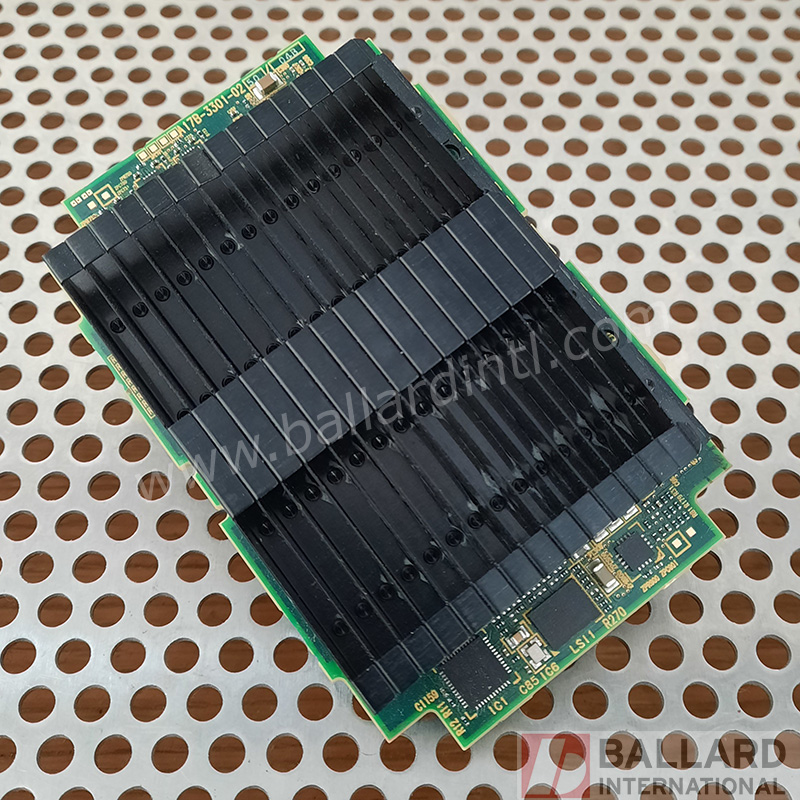

SPECIFICATIONS FOR A17B-3301-0250:
- This CPU card is an option that may be installed horizontally to the main PCB for Fanuc R-30iB Plus & R-30iB Mate Plus Controllers:
- See Related Parts (below) for main board options.
- Standard DRAM 1GB
- For I/O Link i slave
- Fanuc ordering specification #: A05B-2670-H020
Related Parts:
Main Boards – R-30iB Plus:
- A16B-3200-0810: Standard Option, RS232C 1ch, For I/O Link i slave
- A16B-3200-0811: Force Sensor, 1 Channel, I/O Link Option
- A16B-3200-0812: Force Sensor, High Speed, 1 Channel, I/O Link Option
- A16B-3200-0814: Standard, 1 Channel, Without Vision I/F, I/O Link Option
- A16B-3200-0815: Force Sensor, 1 Channel, Without Vision I/F, I/O Link Option
- A16B-3200-0816: Force Sensor, High Speed, 1 Channel, Without Vision I/F, I/O Link Option
- A16B-3200-0817: Force Sensor, High Speed, 2 Channel, I/O Link Option
- A16B-3200-0818: Force Sensor, High Speed, 2 Channel, Without Vision I/F, I/O Link Option
Main Boards – R-30iB Mate Plus:
- A20B-8201-0750: Standard, Ethernet:1-100BASE-T, 1-1000BASE-T, For I/O Link i slave
- A20B-8201-0751: Ethernet:2-100BASE-T, 1-1000BASE-T, Vision I/F, Force sensor I/F, For I/O Link i slave
- A20B-8201-0752: Ethernet:2-100BASE-T, 1-1000BASE-T, Vision I/F, Force sensor I/F,PMC, HDI, For I/O Link i slave
CPU Card Options – R-30iB Plus:
- A17B-3301-0250: SDRAM 1GB
- A17B-3301-0252: SDRAM 1GB, For I/O Link i slave
Axis Control Card Options:
- A20B-3300-0819: 6-Axis
- A20B-3300-0818: 12-Axis
- A20B-3300-0817: 18-Axis
- A20B-3300-0816: 24-Axis
- A20B-3300-0815: 36-Axis
