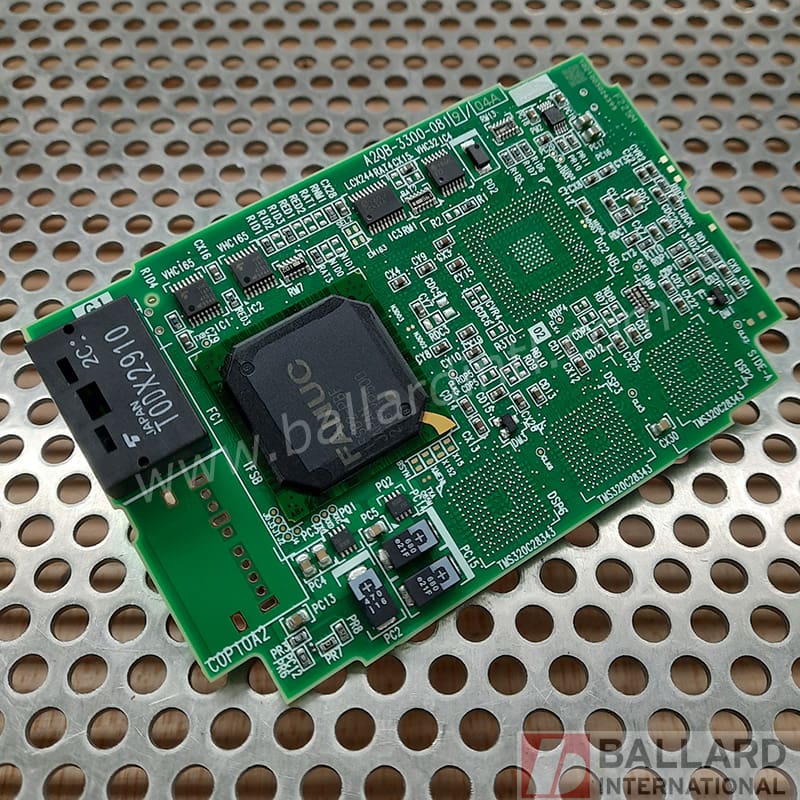

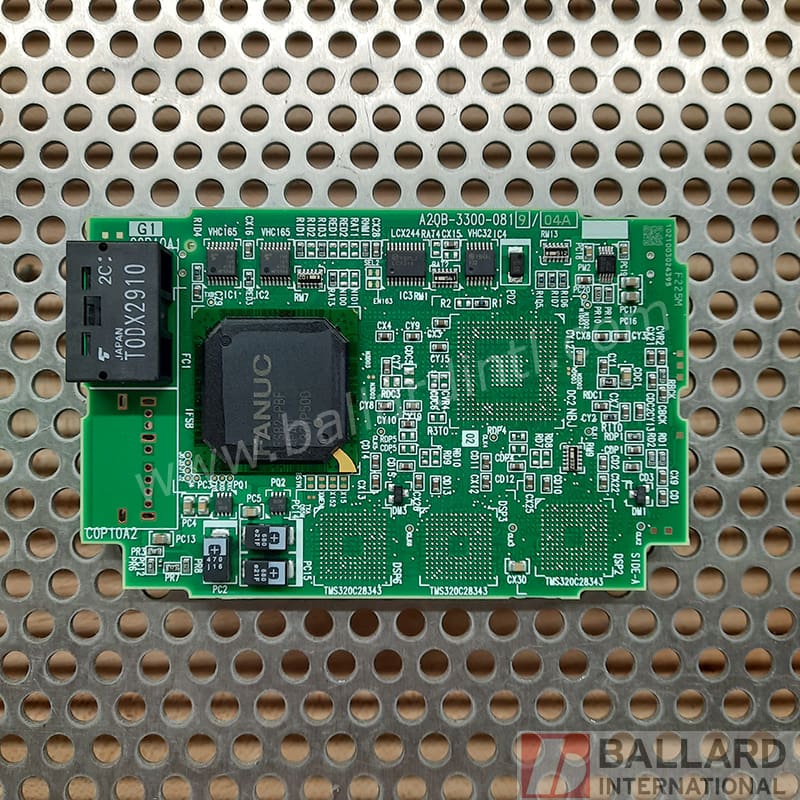

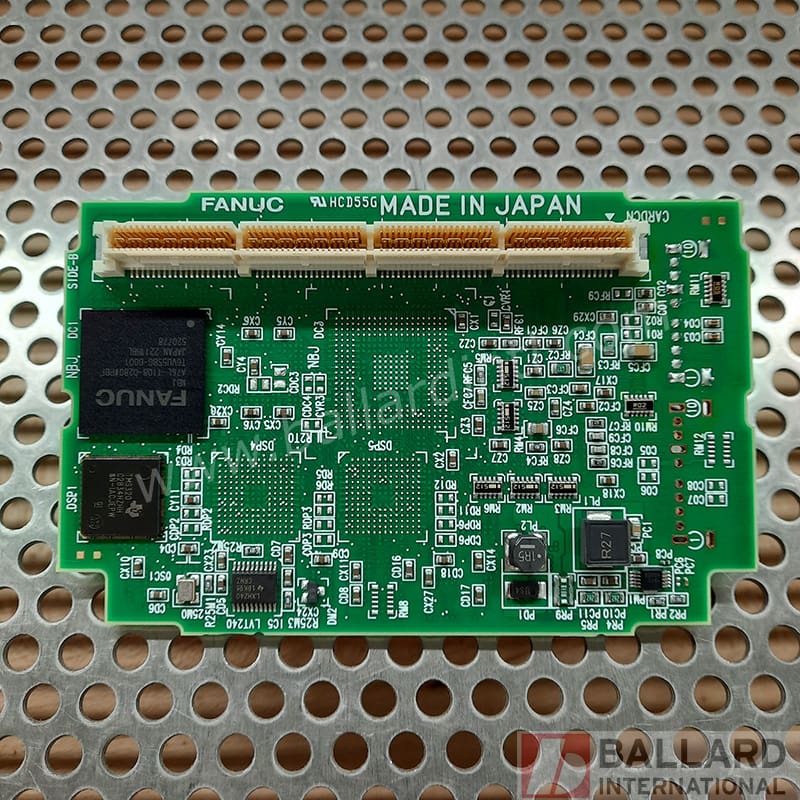

SPECIFICATIONS FOR A20B-3300-0819
- 6-Axis Control Card for use with FANUC R-30iB Plus Controllers.
- This servo card is an option that may be installed horizontally to the main PCB for Fanuc R-30iB Plus and R-30iB Mate Plus Controllers.
- See Related Parts (below) for for main board options.
- Fanuc ordering specification #: A05B-2670-H040
Related Parts:
Axis Control Card Options – R-30iB Plus:
- A20B-3300-0819: 6-Axis
- A20B-3300-0818: 12-Axis
- A20B-3300-0817: 18-Axis
- A20B-3300-0816: 24-Axis
- A20B-3300-0815: 36-Axis
Main Boards – R-30iB Plus:
- A16B-3200-0811: Force Sensor, 1 Channel, I/O Link Option
- A16B-3200-0812: Force Sensor, High Speed, 1 Channel, I/O Link Option
- A16B-3200-0814: Standard, 1 Channel, Without Vision I/F, I/O Link Option
- A16B-3200-0815: Force Sensor, 1 Channel, Without Vision I/F, I/O Link Option
- A16B-3200-0816: Force Sensor, High Speed, 1 Channel, Without Vision I/F, I/O Link Option
- A16B-3200-0817: Force Sensor, High Speed, 2 Channel, I/O Link Option
- A16B-3200-0818: Force Sensor, High Speed, 2 Channel, Without Vision I/F, I/O Link Option
Main Boards – R-30iB Mate Plus:
- A20B-8201-0750: Standard, Ethernet:1-100BASE-T, 1-1000BASE-T, For I/O Link i slave
- A20B-8201-0751: Ethernet:2-100BASE-T, 1-1000BASE-T, Vision I/F, Force sensor I/F, For I/O Link i slave
- A20B-8201-0752: Ethernet:2-100BASE-T, 1-1000BASE-T, Vision I/F, Force sensor I/F,PMC, HDI, For I/O Link i slave
CPU Card Options – R-30iB Plus:
- A17B-3301-0250: SDRAM 1GB
- A17B-3301-0252: SDRAM 1GB, For I/O Link i slave
FROM/SRAM Module Options – R-30iB Plus:
- A20B-3900-0293 or A17B-3900-0112: FROM 256MB / SRAM 1MB
- A20B-3900-0295 or A17B-3900-0113: FROM 256MB / SRAM 2MB
- A20B-3900-0296 or A17B-3900-0115: FROM 256MB / SRAM 3MB
