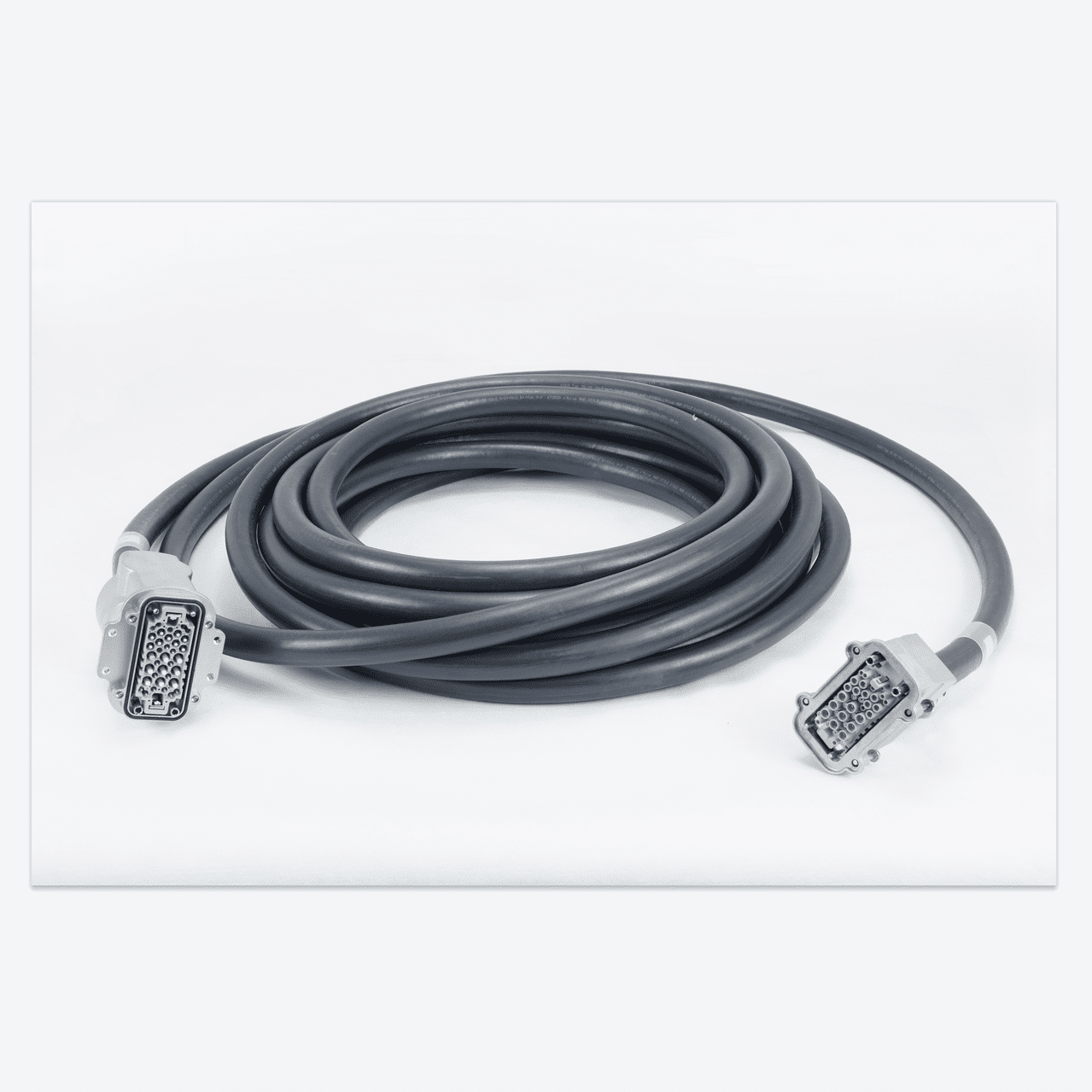

KUKA 00-339-284 MOT X30 Motor Cable 15m – KRC4
The flexible motor cable (MOT) connects the interface plate with a robot. It can also be used as an extension.
SPECIFICATIONS:
- For use with KUKA KRC4 Controllers
- KUKA Article No.: 339284
- Length: 15 Meters
|
Component |
Motor cable |
|---|---|
|
Installation type |
Suitable for cable carrier |
|
Maximum outer diameter |
29.5 mm |
|
Minimum bending radius |
3x outer diameter, static; |
|
Length |
15 m |
|
Sheath material |
PUR |
|
UL approval |
true |
|
Oil-resistant |
true |
|
Halogen-free |
true |
|
Flammability |
Flame-retardant |
|
Ambient temperature during operation |
-30 °C to 60 °C (243 K to 333 K) |
|
Rated voltage |
450 V/750 V Uo/U acc. to VDE; |
$1,460.00 – $4,927.50
