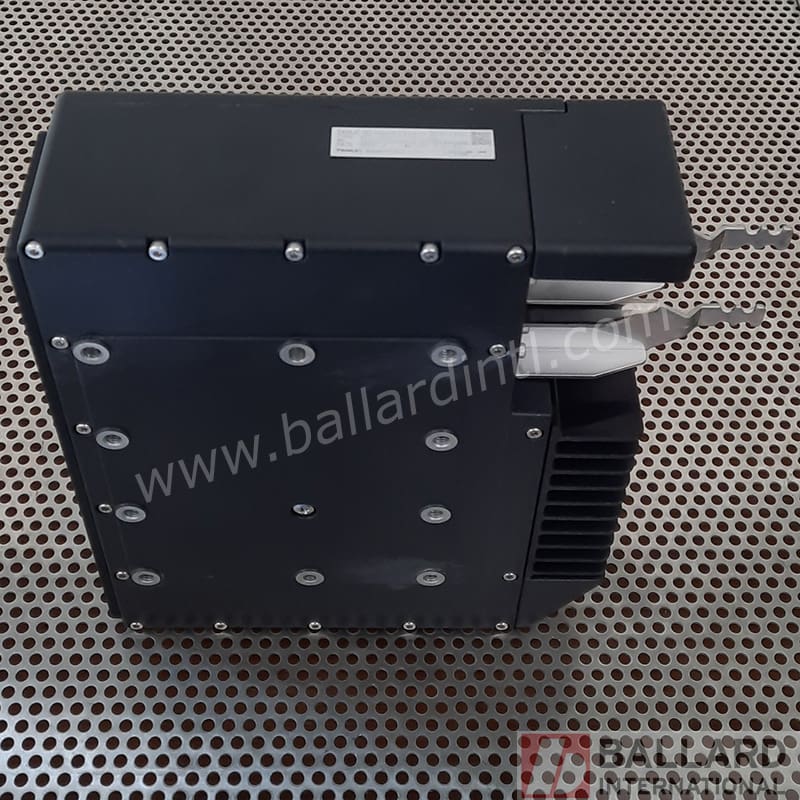

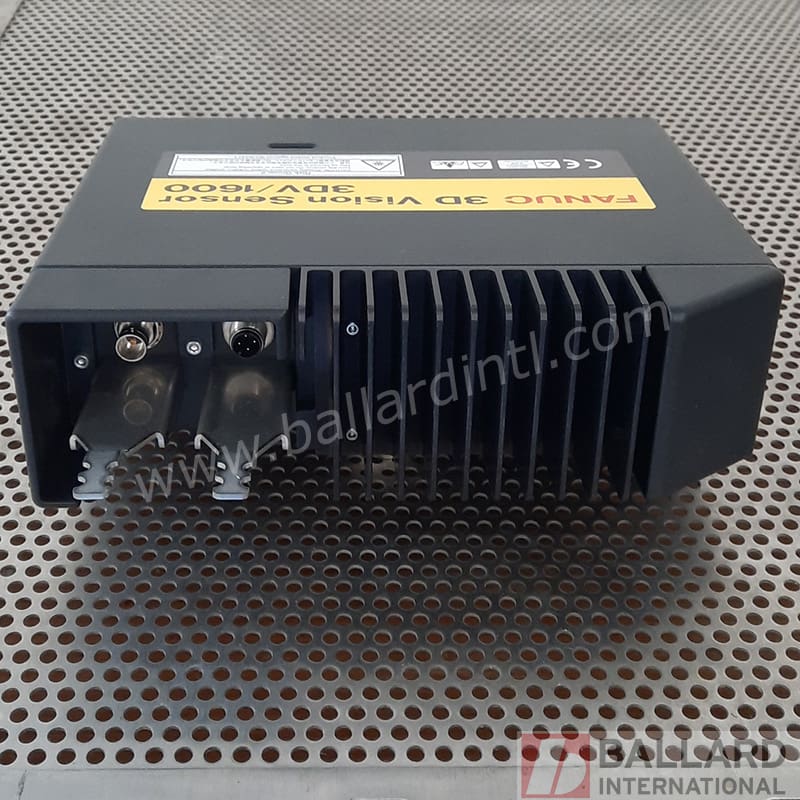

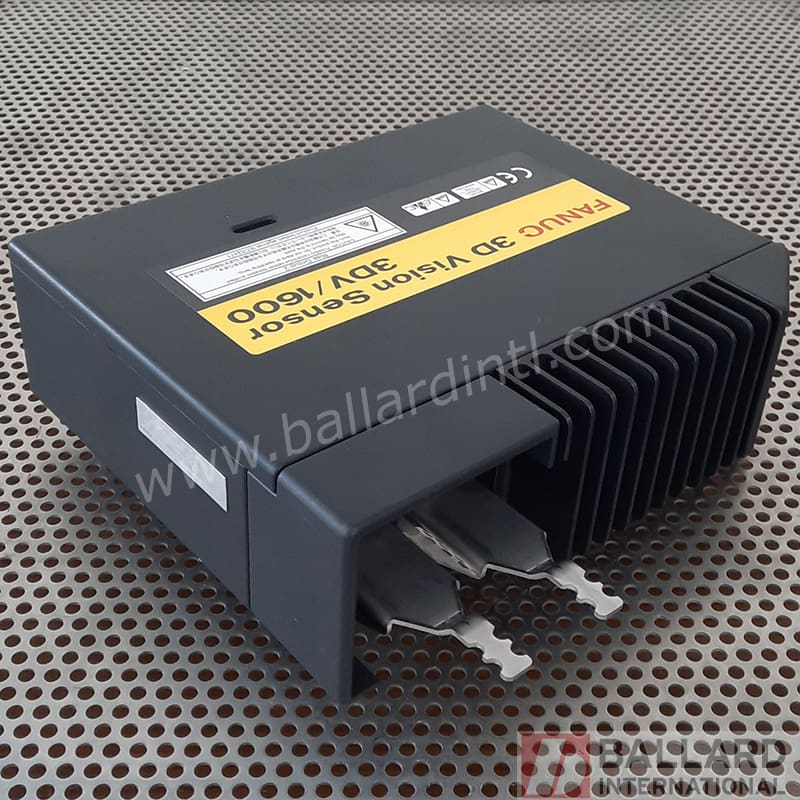

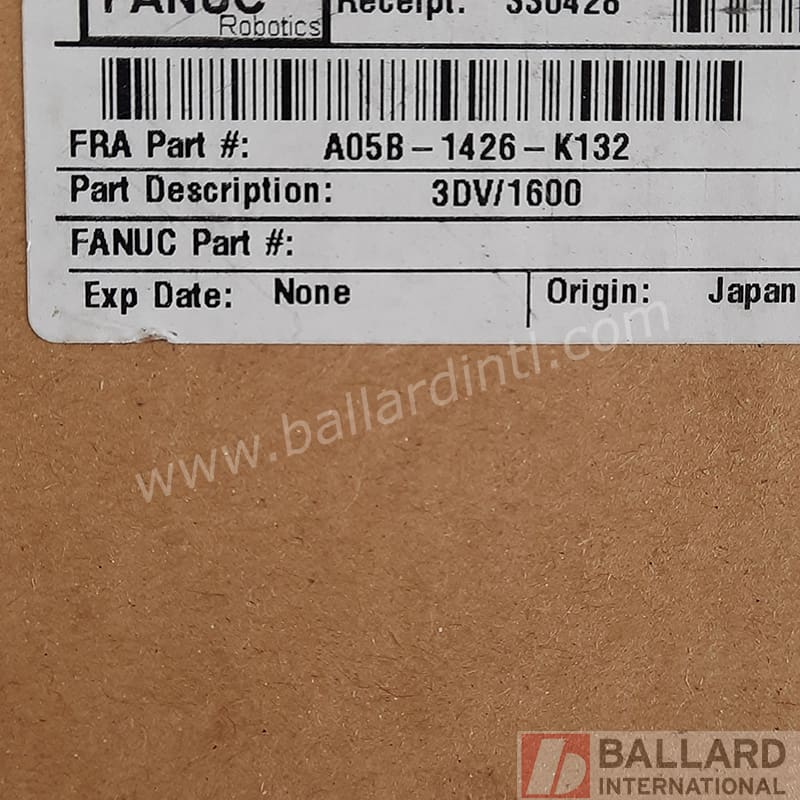

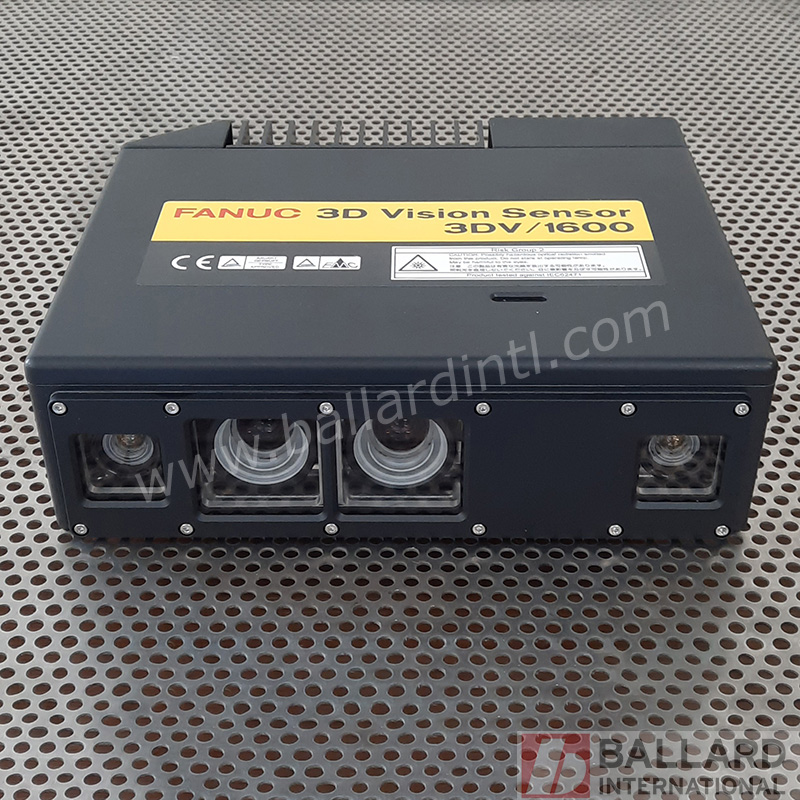

FANUC A05B-1426-K132 iRVision 3D Vision Sensor 3DV/1600 With LED – R30iB Plus

SPECIFICATIONS:

• For use with Fanuc R-30iB Plus Controllers.
  • iRVision function and a dedicated camera port are integrated into the robot controller.
• Measurement Method: 3D measurement with a single pattern light
• Maximum 3D Points: 1104 x 960
• Measurement Range [mm]*
  • W1xD1xH: 1245 x 1178 x 2000
  • W2xD2: 3203 x 2797
• LED Light for 2D Detection Blue
• Outer Dimension [mm]: 234 x 198.2 x 70
• Weight [kg]: 3.2
• Includes:

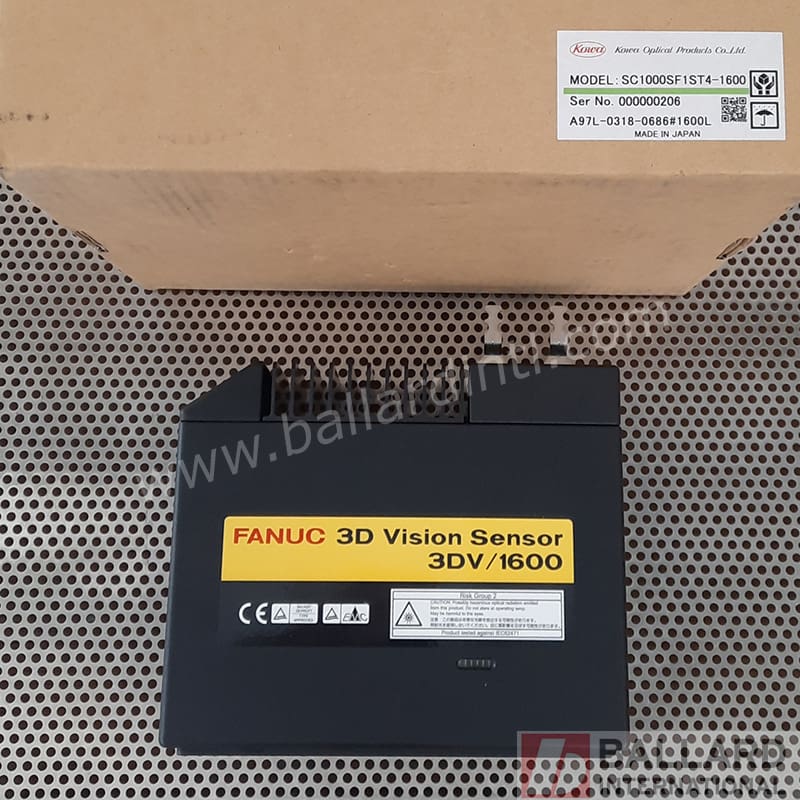

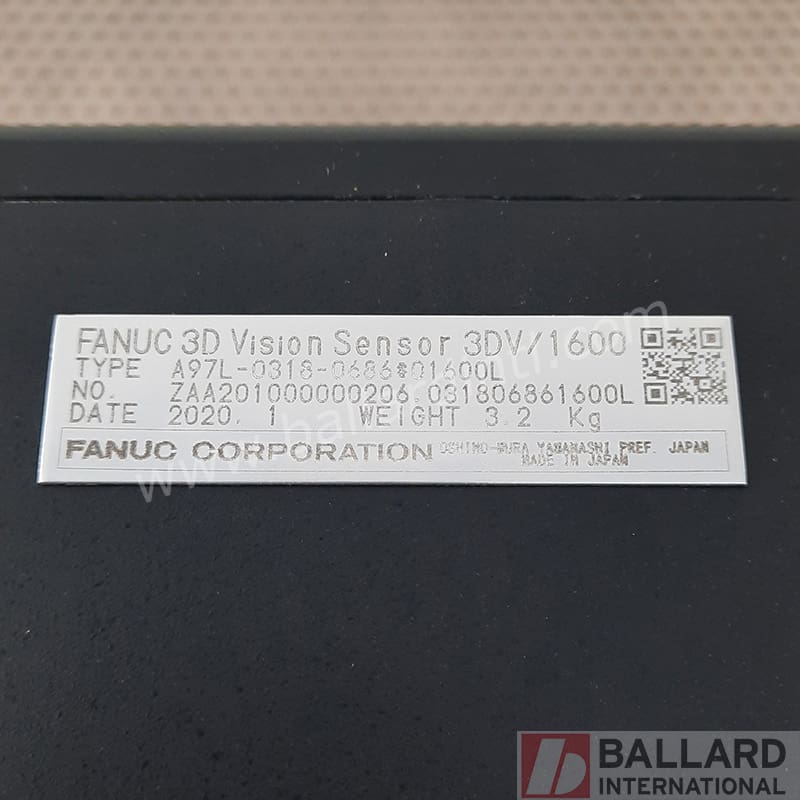

  • 3D Vision Sensor: A97L-0318-0686#01600L
  • Mounting hardware

CONDITION: NEW

*See last image
