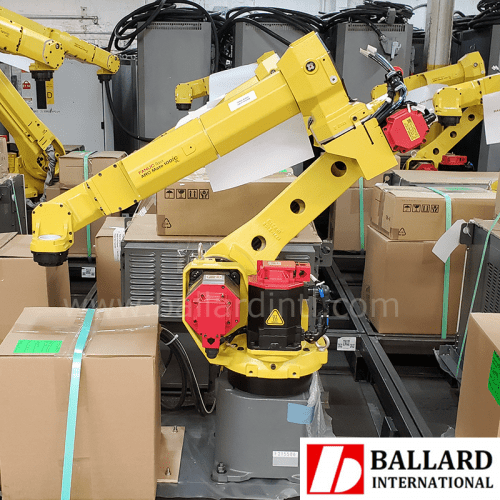

FANUC ArcMate 100iC 7L

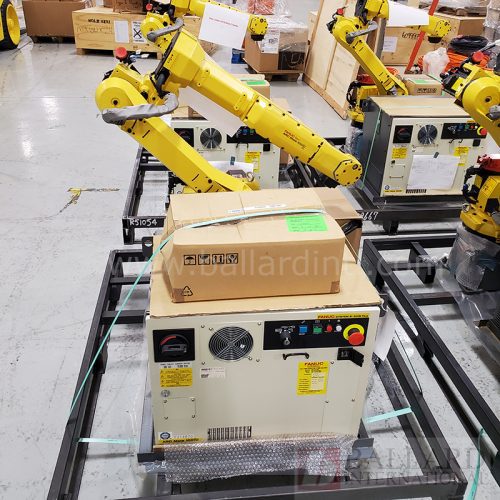

R30iB Plus Controller

Available ArcMate 100iC 7L’s in Stock: 2

Condition: NEW

Year: 2018
Hours: Zero
Software: ArcTool
Includes software options: Dual Check Safety, Collision Guard, Ethernet IP

Payload: 7kg
Reach: 1632mm
Robot Weight: 135kg
Controller Weight: 380kg
Power Requirements: 480volts, 3 Phase, 18 amps



Click for additional robot specs including:

– Technical Data
– Work Envelope
– Mouthing Requirements/Diagram
– End of Arm Bolt Pattern
– Much More…

The Fanuc Arcmate 100iC 7L is specifically designed for robotic mig welding applications. The Arcmate robot arm features a hollow through arm for torch cable management and motion performance. The 100iC 7L offers an extend reach of 1632mm in length and the newest Fanuc R30iB Plus Controllers. A highly rigid arm and servo technology allow the Arcmate robot to be extremely precise. The ArcMate can integrate weld power cables in addition to wire feeder control cables and assist gas hoses.
