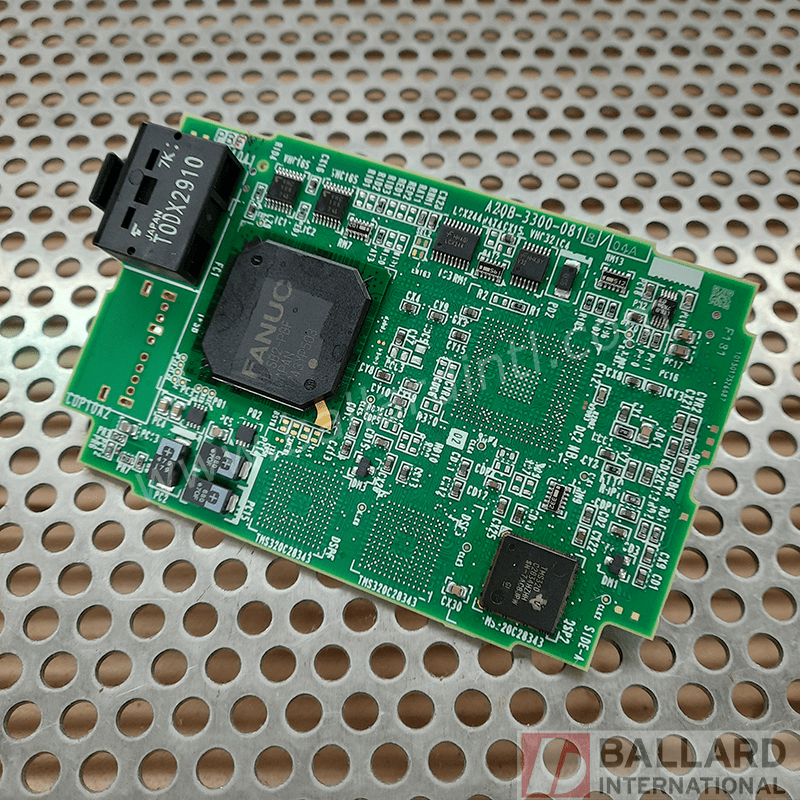

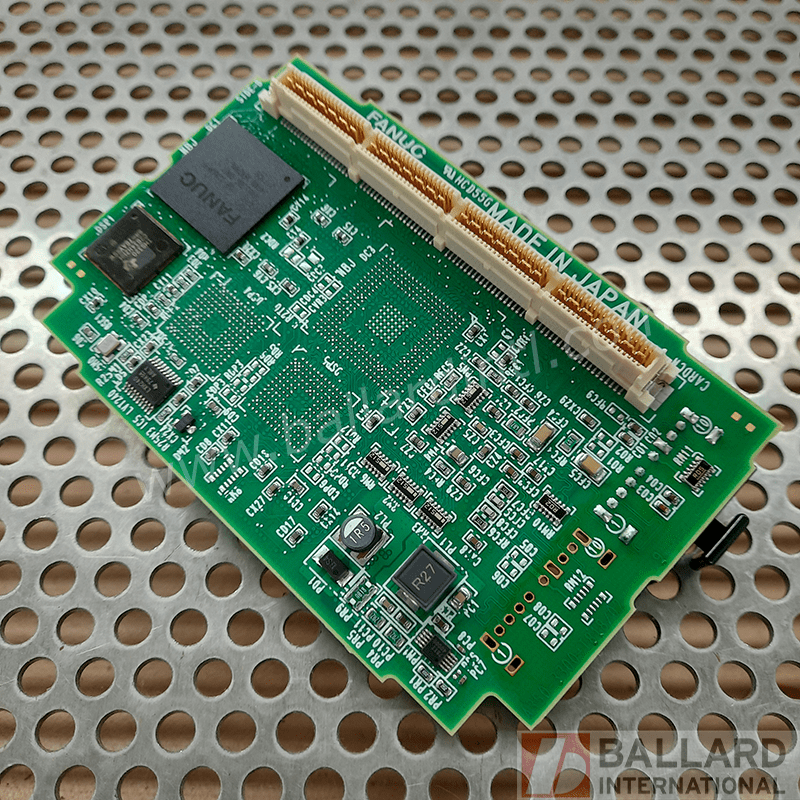

FANUC A20B-3300-0818/A05B-2670-H041 R-30iB Plus 12-Axis Servo Card

A20B-3300-0818/A05B-2670-H041
12-Axis Servo Card

SPECIFICATIONS:

Axis Control Card for use with Fanuc R-30iB Plus Controllers.
12-axis
This servo card is an option that may be installed horizontally to the main PCB for Fanuc R-30iB Plus and R-30iB Mate Plus Controllers.
- See Related Parts (below) for for main board options.
Fanuc ordering specification #: A05B-2670-H041

CONDITION: USED

Related Parts:

Additional Axis Servo Card Options - R-30iB Plus

A20B-3300-0819 (6-Axis)
A20B-3300-0818 (12-Axis)
A20B-3300-0817 (18-Axis)
A20B-3300-0816 (24-Axis)
A20B-3300-0815 (36-Axis)

Main Board Options - R-30iB Plus

A16B-3200-0810 (Standard, 1Ch, I/O Link Option)
A16B-3200-0811 (Force Sensor, 1Ch, I/O Link Option)
A16B-3200-0812 (Force Sensor, High Speed, 1Ch, I/O Link Option)
A16B-3200-0814 (Standard, 1Ch, Without Vision I/F, I/O Link Option)
A16B-3200-0815 (Force Sensor, 1Ch, Without Vision I/F,? I/O Link Option)
A16B-3200-0816 (Force Sensor, High Speed, 1Ch, Without Vision I/F, I/O Link Option)
A16B-3200-0817 (Force Sensor, High Speed, 2Ch, I/O Link Option)
A16B-3200-0818 (Force Sensor, High Speed, 2Ch, Without Vision I/F, I/O Link Option)

See R-30iB Main PCB Card & Module Reference Guide for more information?

Main Board Options - R-30iB Mate Plus

A20B-8201-0750 (Standard, I/O Link Option )
A20B-8201-0751 (Force Sensor, I/O Link Option)
A20B-8201-0752 (Force Sensor, High Speed, I/O Link Option)

See R-30iB Mate Main PCB Card & Module Reference Guide for more information

1:1:1
E

$872.60

1 in stock
