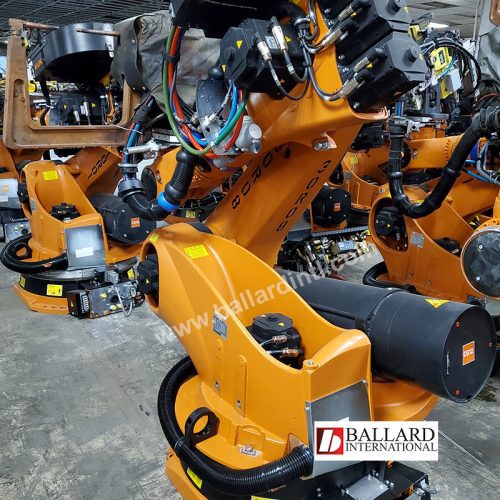

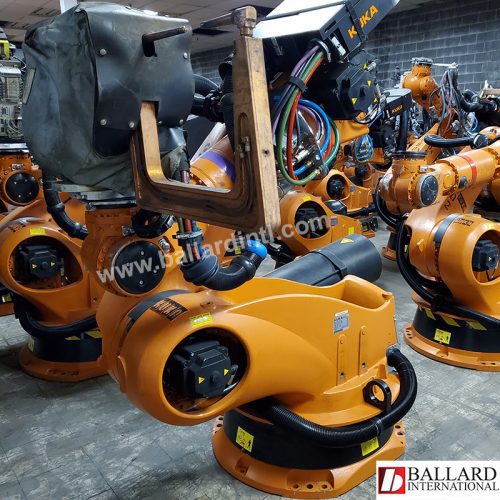

KUKA KR210 K
KRC2ed05 Controller

KR210 Robots Available: 5

Used – Tested and in good working condition

Year: 2010
Hours: 8,000 – 24,000
Software: v5.6.10 (xp)
Payload: 210kg
Reach: 3100mm
Robot Weight: 1284kg
Controller Weight: 380kg
Power Requirements: 480volts, 3 Phase, 18 amps



KR210 is available in the following variations:

KR210:           210kg / 2700mm reach
KR210L180:   180kg / 2900mm reach
KR210L150:   150kg / 3100mm reach
KR210 K:        Shelf / Riser Mounted
KR210 C:        Ceiling / Upside Down Mounted





Click for complete KR210K Specs including:

– Technical Data
– Work Envelope
– Mouthing Requirements/Diagram
– End of Arm Bolt Pattern
– Much More…

The KUKA KR210 K is a shelf mounted robot that is designed for increased flexibility and a long downward reach. With powerful motors, high-performance gear units and achieve high output with payloads of up to 210 kg and a work envelope of up to 8 meters. With installation on either the floor or a machine, space-saving is ideally suited to challenging removal processes. This shelf-mounted robot is perfect for working above, making efficient removal of castings, plastic parts, or stampings. With the low weight, the KUKA KR210 K can be installed directly on the machine, saving space and enabling the robot to reach far into a machine with a higher speed. The KR210 K robot has the advantage of reduced space requirements and improved process optimization.
