  6. FANUC A20B-3300-0663/A05B-2600-H041 R-30iB 12-Axis Servo Card

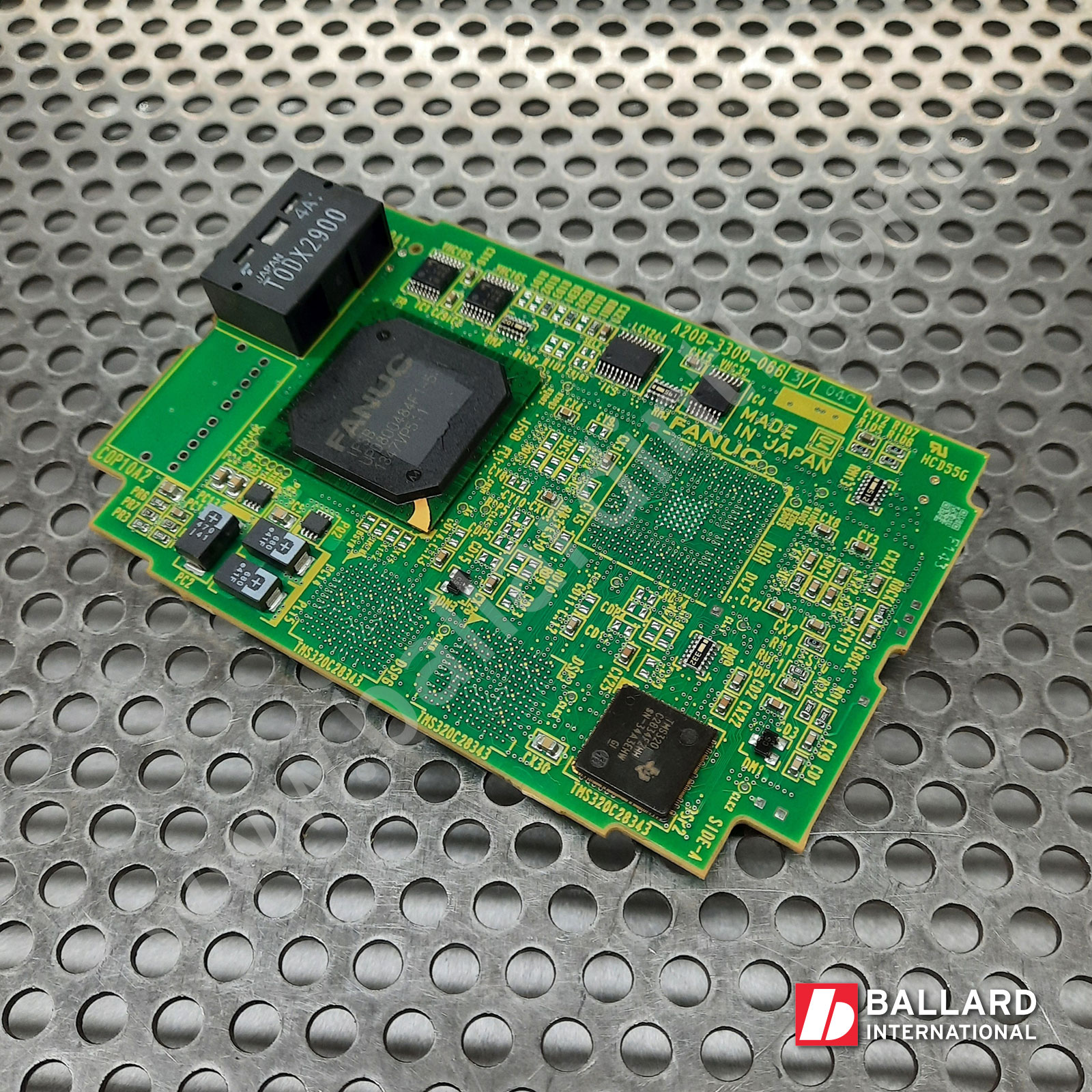

A20B-3300-0663 12 axis servo card for FANUC r30iB controllers

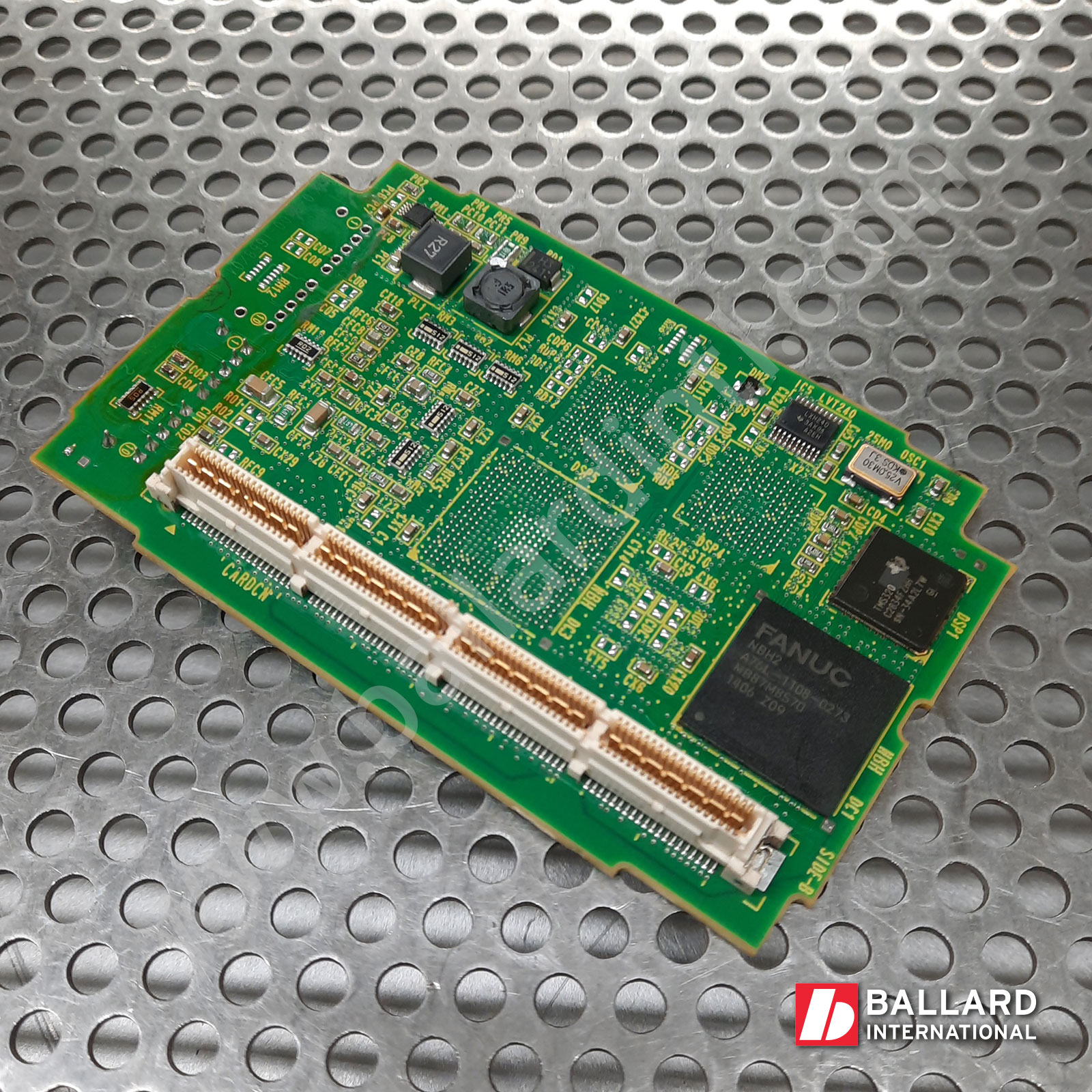

A20B-3300-0663-(2) fanuc r30iB controller 12 axis card

FANUC A20B-3300-0663/A05B-2600-H041 R-30iB 12-Axis Servo Card

SPECIFICATIONS:
  • For use with Fanuc R-30iB Controllers.
  • 12-axis
  • This servo card is an option that may be installed horizontally to the main board for Fanuc R-30iB and R-30iB Mate Controllers.
    • See Related Parts (below) for main board options
  • Alternative Part #s: A05B-2600-H041, A20B-3300-0773
Related Parts:
Additional Axis Servo Card Options - R-30iB

A20B-3300-0774 or A20B-3300-0664 (6-Axis)
A20B-3300-0773 or A20B-3300-0663 (12-Axis)
A20B-3300-0772 or A20B-3300-0662 (18-Axis)
A20B-3300-0771 or A20B-3300-0661 (24-Axis)
A20B-3300-0770 or A20B-3300-0600 (32-Axis)

Main Board Options - R-30iB

A16B-3200-0730 or A16B-3200-0780 (Standard Option)
A16B-3200-0731 or A16B-3200-0781 (Force Sensor Option)
A16B-3200-0732 or A16B-3200-0782 (Force sensor, High Speed Option)
See R-30iB Main PCB Card & Module Reference Guide for more information

Main Board Options - R-30iB Mate

A20B-8200-0790 (Standard Option)
A20B-8200-0791 (Force Sensor Option)
A20B-8200-0792 (Force Sensor, PMC, HDI Option)
A20B-8201-0420 (Standard, 1Ch, I/O Link Option)
A20B-8201-0421 (Force Sensor, 2Ch, Vision I/F, I/O Link Option)
A20B-8201-0422 (Force Sensor, 2Ch, Vision I/F, PMC, HDI I/O Link Option)
See R-30iB Mate Main PCB Card & Module Reference Guide for more information


E

$872.40 – $2,835.30
