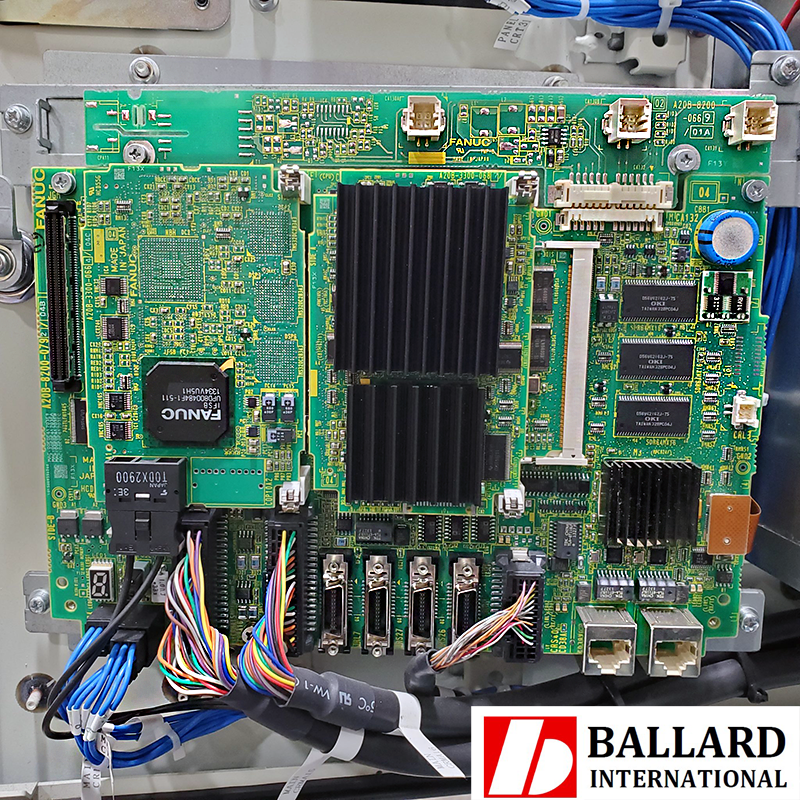

FANUC A20B-8200-0790/ A05B-2650-H001 Main PCB – R30iB Mate

***This listing is for the main board only, the daughterboards are not included. Most axis control cards, CPU cards and FROM/SRAM modules are available for purchase separately, see Related Parts. If you do not see the option you are looking for, contact us for more info!***

  • Main Board/PCB for Fanuc R-30iB Mate Controllers.
    • Standard, Ethernet: 1 Channel
    • See “Alternate Main Boards”  for other options
  • The main board is an important component that stores the robot’s programs and configurations. It also controls servo mechanism positioning.
  • Contains: microprocessor, peripheral circuits, memory, and operator’s panel control circuit.
  • There are various cards and module options that may be installed horizontally to the main board.
    • See Related Parts (below) for card options
    • Or see R-30iB Mate Main PCB Card & Module Reference Guide for more information
  • Fanuc ordering specification #: A05B-2650-H001


Related Parts:

A20B-8200-0791 (Force Sensor Option)
A20B-8200-0792 (Force Sensor, PMC, HDI Option)
A20B-8201-0420 (Standard, 1Ch, I/O Link Option)
A20B-8201-0421 (Force Sensor, 2Ch, Vision I/F, I/O Link Option)
A20B-8201-0422 (Force Sensor, 2Ch, Vision I/F, PMC, HDI I/O Link Option)

A20B-3300-0686 or A17B-3301-0106 (SDRAM 32MB)
A20B-3300-0687 or A17B-3301-0107 (SDRAM 64MB)
A20B-3300-0688 or A17B-3301-0108 (SDRAM 128MB)

A20B-3900-0283 or A20B-3900-0297 (FROM 32MB/ SRAM 1MB)
A20B-3900-0284 or A20B-3900-0298 (FROM 32MB/ SRAM 2MB)
A20B-3900-0285 or A20B-3900-0299 (FROM 32MB/ SRAM 3MB)
A20B-3900-0286 (FROM 64MB/ SRAM 1MB)
A20B-3900-0287 (FROM 64MB/ SRAM 2MB)
A20B-3900-0288 (FROM 64MB/ SRAM 3MB)
A20B-3900-0280 (FROM 128MB/ SRAM 1MB)
A20B-3900-0281 (FROM 128MB/ SRAM 2MB)
A20B-3900-0282 (FROM 128MB/ SRAM 3MB)

A20B-3300-0664 or A20B-3300-0774 (6-Axis)
A20B-3300-0663 or A20B-3300-0773 (12-Axis)
A20B-3300-0662 or A20B-3300-0772 (18-Axis)
A20B-3300-0661 or A20B-3300-0771 (24-Axis)
A20B-3300-0660 or A20B-3300-0770 (36-Axis)


Out of stock
