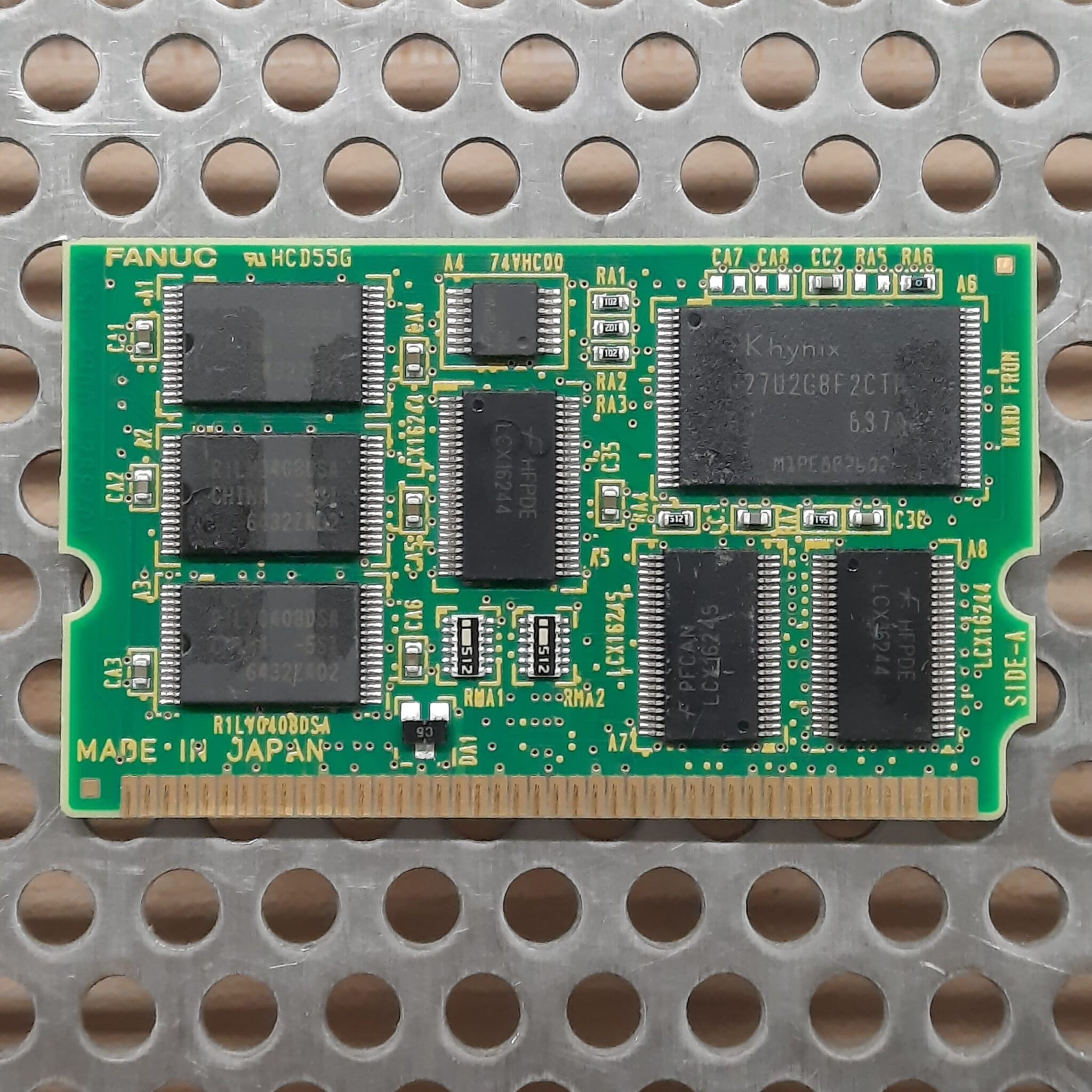

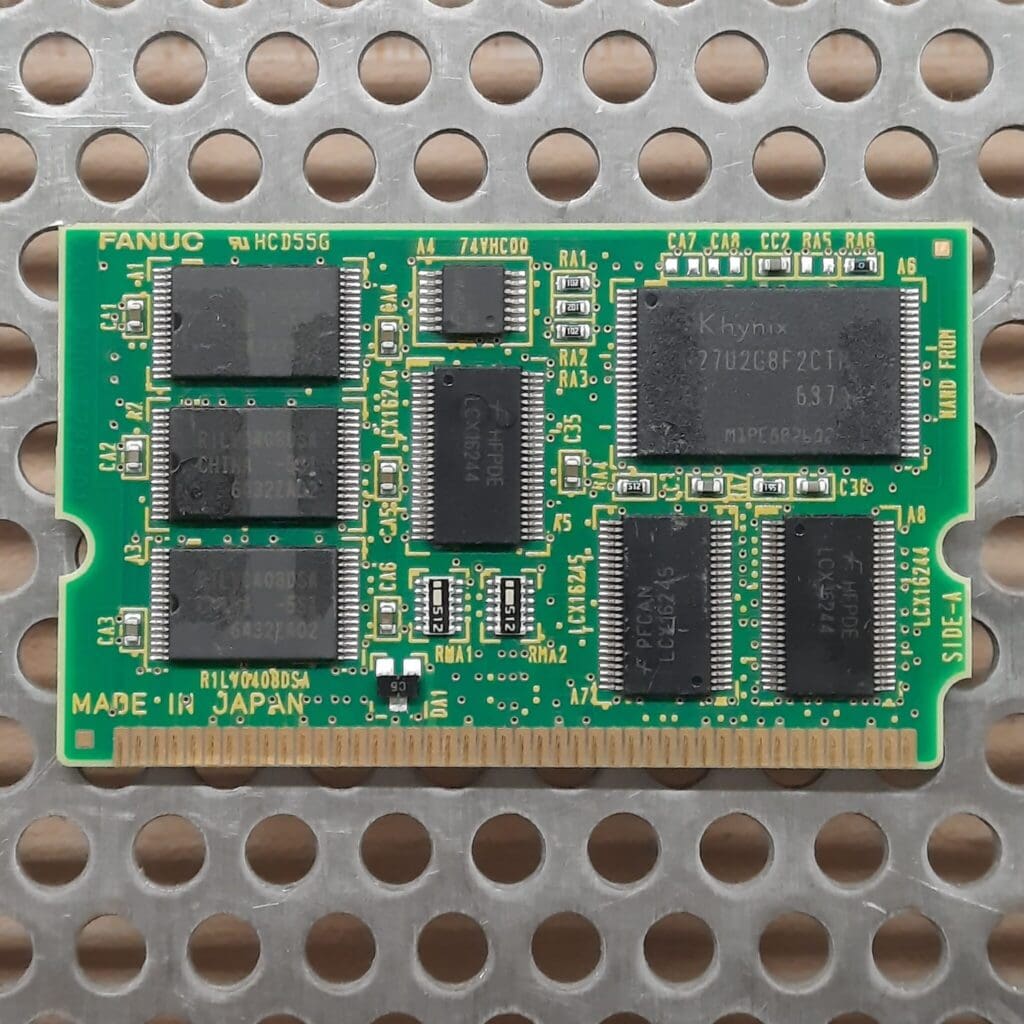

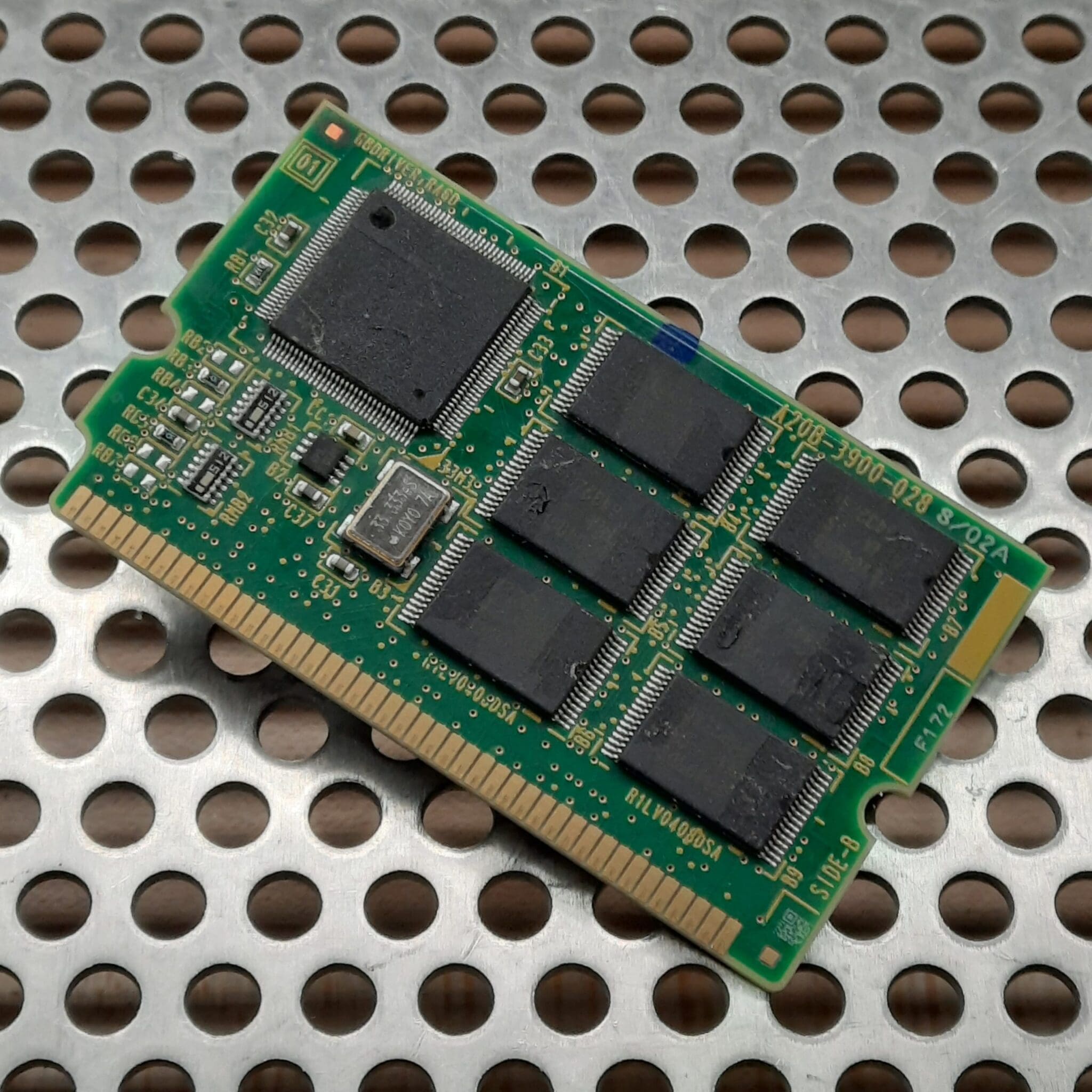

FANUC A20B-3900-0288/A05B-2600-H065 FROM 64MB/ SRAM 3MB Module – R30iB


  • This module is an option that may be installed horizontally to the main board within Fanuc R-30iB or R-30iB Mate Controllers:
    • See Related Parts (below) for for main board options.
  • FROM 64M/ SRAM 3MB
  • Alternative Part #: A05B-2600-H065
  • See “Related Parts” for additional module options

Related Parts:

Additional FROM/SRAM Module Options:
A20B-3900-0283 or A20B-3900-0297 (FROM 32MB/ SRAM 1MB)
A20B-3900-0284 or A20B-3900-0298 (FROM 32MB/ SRAM 2MB)
A20B-3900-0285 or A20B-3900-0299 (FROM 32MB/ SRAM 3MB)
A20B-3900-0286 (FROM 64MB/ SRAM 1MB)
A20B-3900-0287 (FROM 64MB/ SRAM 2MB)
A20B-3900-0280 (FROM 128MB/ SRAM 1MB)
A20B-3900-0281 (FROM 128MB/ SRAM 2MB)
A20B-3900-0282 (FROM 128MB/ SRAM 3MB)

R-30iB Main Boards:
A16B-3200-0730 or A16B-3200-0780 (Standard Option)
A16B-3200-0731 or A16B-3200-0781 (Force Sensor Option)
A16B-3200-0732 or A16B-3200-0782 (Force sensor, High Speed Communication Option)

R-30iB Mate Main Boards:
A20B-8200-0790 (Standard Option)
A20B-8200-0791 (Force Sensor Option)
A20B-8200-0792 (Force Sensor, PMC, HDI Option)
A20B-8201-0420 (Standard, 1Ch, I/O Link Option)
A20B-8201-0421 (Force Sensor, 2Ch, Vision I/F, I/O Link Option)
A20B-8201-0422 (Force Sensor, 2Ch, Vision I/F, PMC, HDI I/O Link Option)

See R-30iB Main PCB Card & Module Reference Guide for more information
