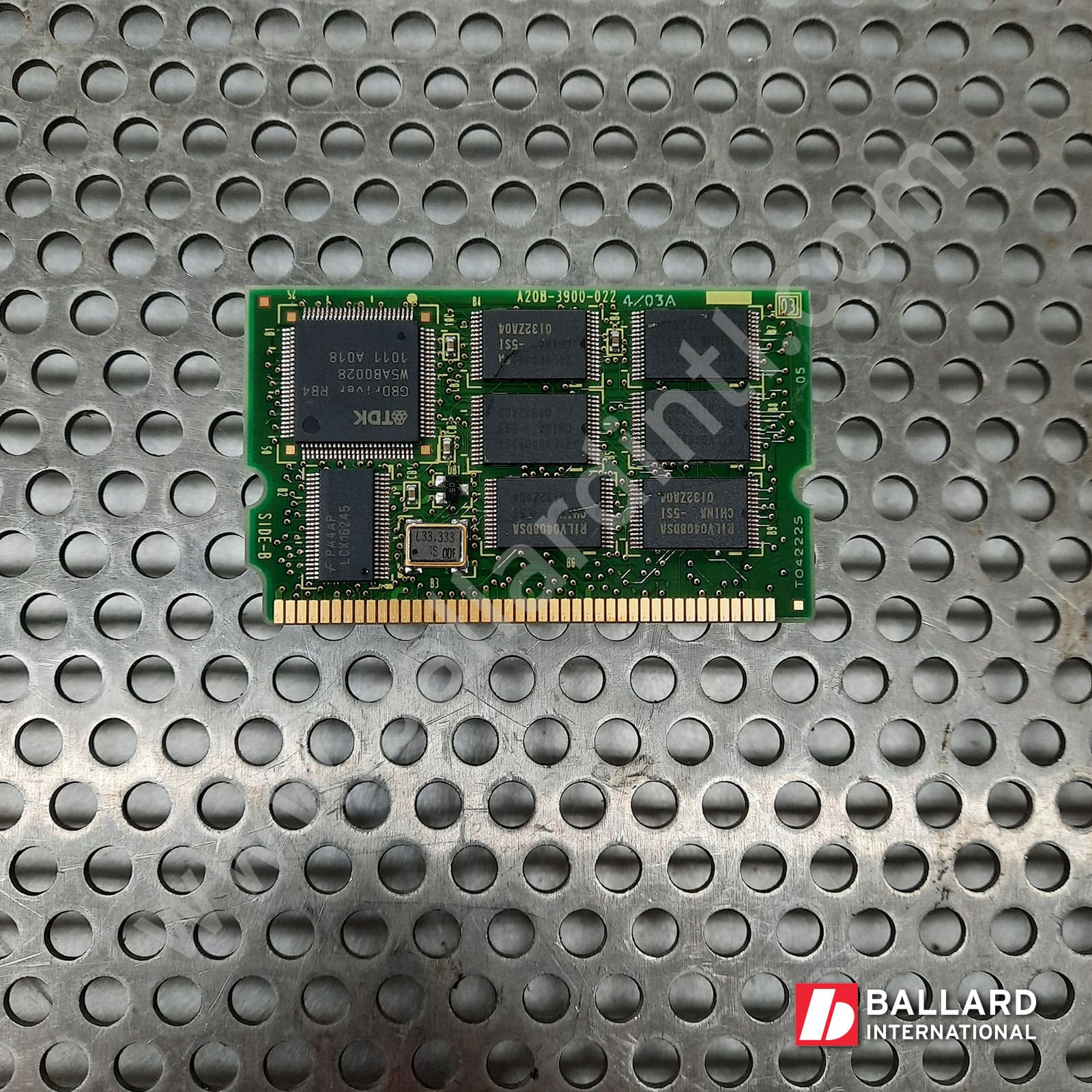

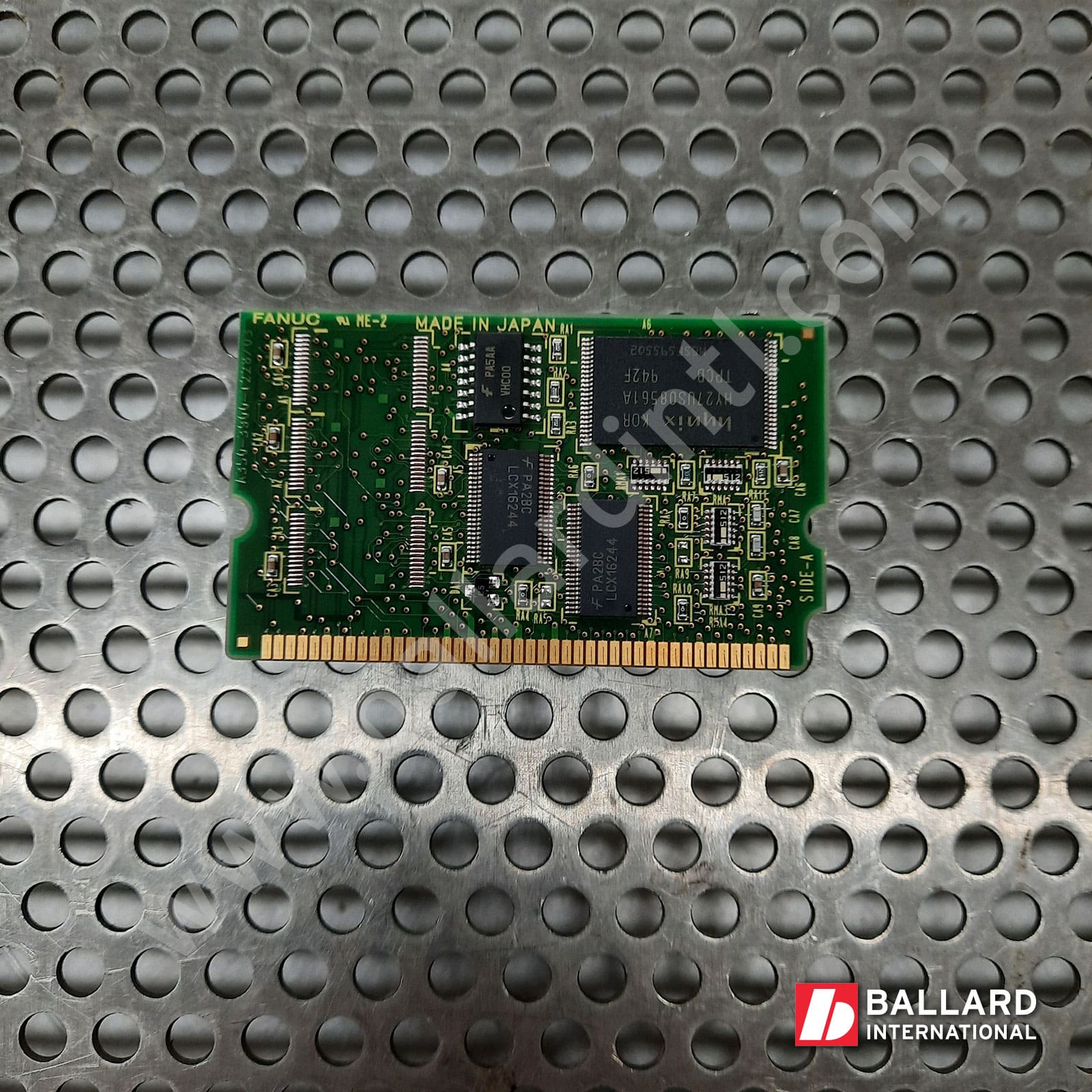

FANUC A20B-3900-0224/A05B-2500-H061 FROM 32MB/ SRAM 2MB Module – R30iA

SPECIFICATIONS:

• For use with Fanuc R-J3iC and R-30iA Controllers.
• This CPU Card is an option that may be installed horizontally to the main board for Fanuc R-30iA Controllers:
  • A16B-3200-0600 (Standard Option)
  • A16B-3200-0601 (Force Sensor Option)
• FROM 32MB/ SRAM 2MB
• Alternative Part #s: A05B-2500-H061, A20B-3900-0164, A20B-3900-0224, A20B-3900-0284, or A20B-3900-0298
• See “Related Parts” for additional module options

CONDITION: USED

Related Parts:

FROM/SRAM Module Options
A20B-3900-0163, A20B-3900-0223, A20B-3900-0283, or A20B-3900-0297 (FROM 32MB/ SRAM 1MB)
A20B-3900-0164, A20B-3900-0284, or A20B-3900-0298 (FROM 32MB/ SRAM 2MB)
A20B-3900-0165, A20B-3900-0225, A20B-3900-0285, or A20B-3900-0299 (FROM 32MB/ SRAM 3MB)
A20B-3900-0166, A20B-3900-0226, or A20B-3900-0286 (FROM 64MB/ SRAM 1MB)
A20B-3900-0167, A20B-3900-0227, or A20B-3900-0287 (FROM 64MB/ SRAM 2MB)
A20B-3900-0228 or A20B-3900-0288 (FROM 64MB/ SRAM 3MB)

CPU Card Options:
A20B-3400-0020 (SDRAM 32MB)
A20B-3400-0021 (SDRAM 64MB)

Axis Control Card Options:
A02B-3300-0445 or A20B-3300-0785 (4-Axis)
A20B-3300-0448 or A20B-3300-0788 (8-Axis)
A20B-3300-0447 or A20B-3300-0787 (12-Axis)
A20B-3300-0442 or A20B-3300-0782 (16-Axis)

See R-30iA Main PCB Card & Module Reference Guide for more information
