Note: This listing is for the main board only, the daughterboards are not included. Most axis control cards, CPU cards and FROM/SRAM modules are available for purchase separately, see Related Parts. If you do not see the option you are looking for, contact us for more info!
SPECIFICATIONS FOR A16B-3200-0600:

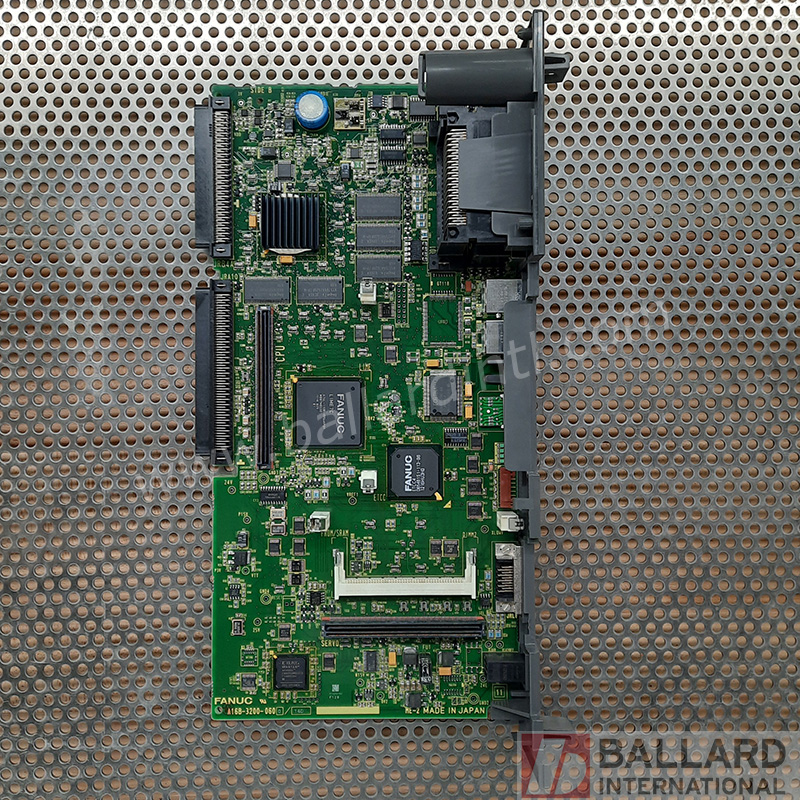

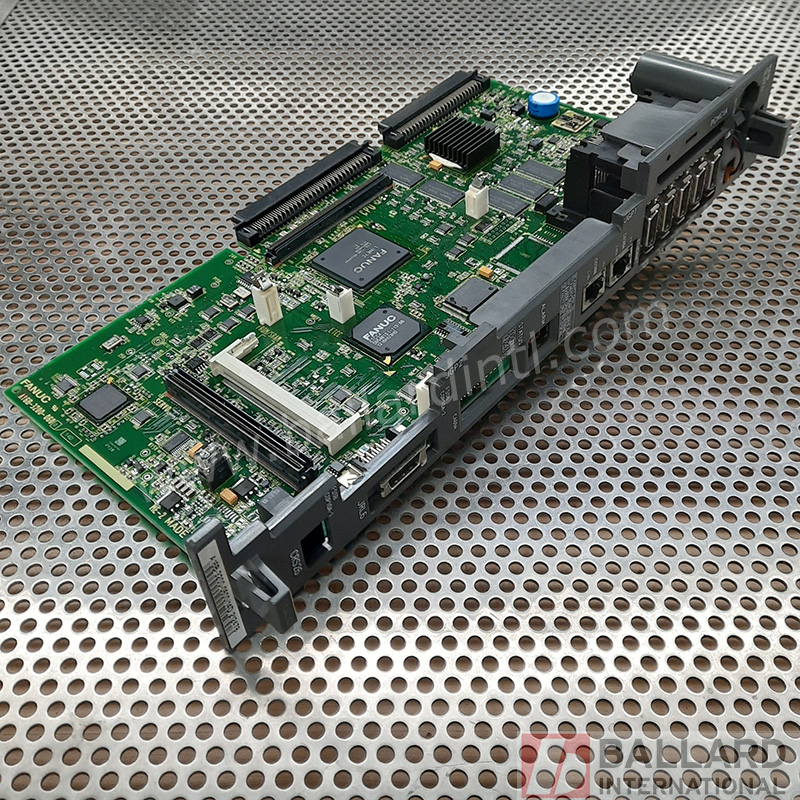

- Main Board/PCB for FANUC R-J3iC and R-30iA Controllers.
- Standard option
- The main board is an important component that stores the robot’s programs and configurations. It also controls servo mechanism positioning.
- Contains: microprocessor, peripheral circuits, memory, and operator’s panel control circuit.
- 2-Slot Backplane: A05B-2500-C001 or 4-Slot Backplane: A05B-2500-C002 is needed to install this board inside of the controller

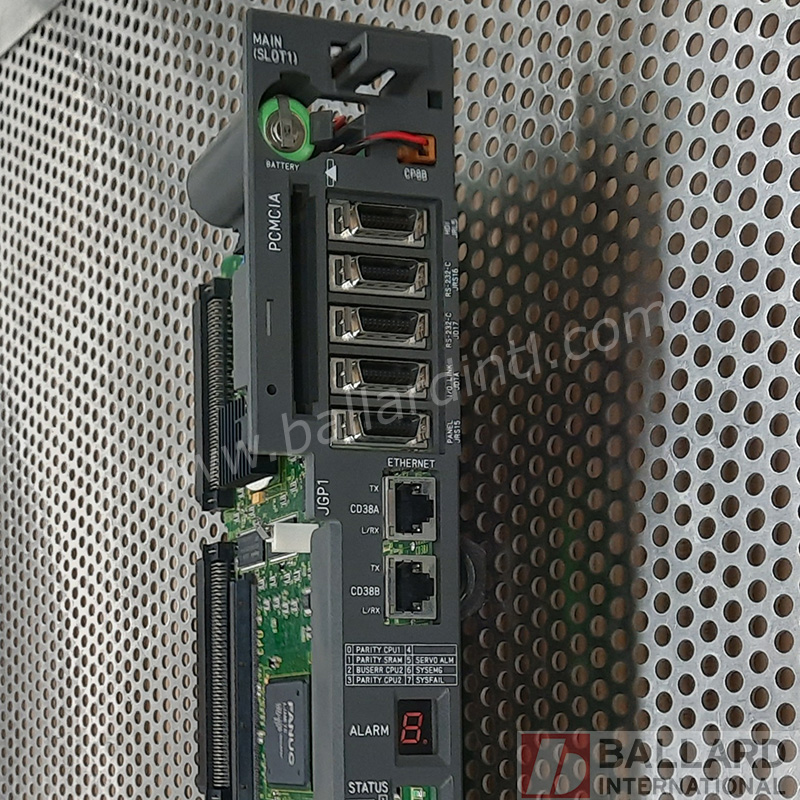

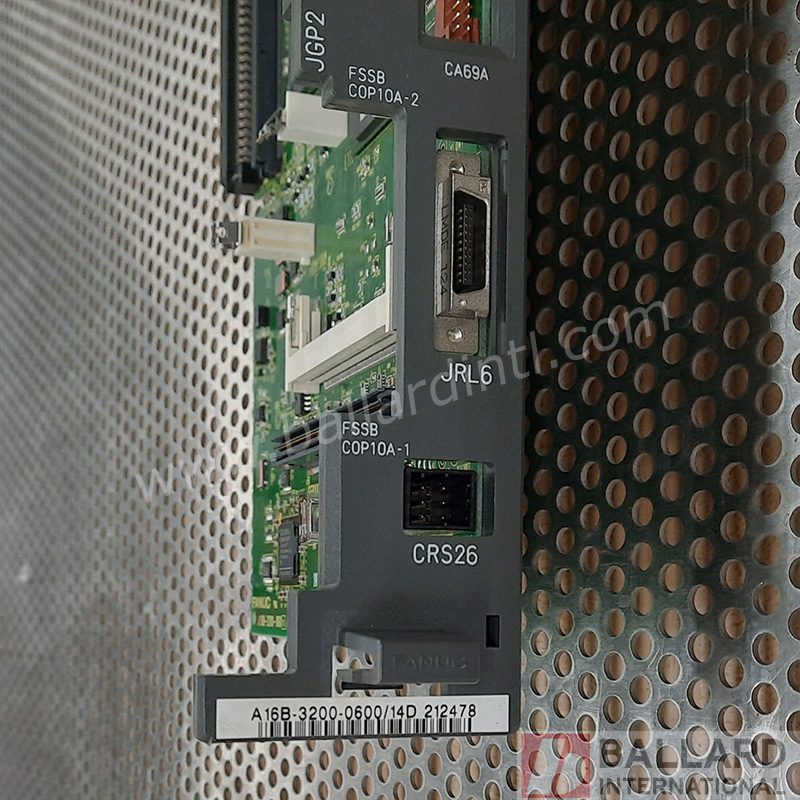

- There are various cards and module options that may be installed horizontally to the main board.
- See Related Parts (below) for card options
- Fanuc ordering specification #: A05B-2500-H001
Related Parts:
Alternate Main Boards:
- A16B-3200-0600 (Standard Option)
- A16B-3200-0601 (Force Sensor Option)
CPU Card Options:
- A20B-3400-0020 (SDRAM 32MB)
- A20B-3400-0021 (SDRAM 64MB)
Axis Control Card Options:
- A02B-3300-0445 or A20B-3300-0785 (4-Axis)
- A20B-3300-0448 or A20B-3300-0788 (8-Axis)
- A20B-3300-0447 or A20B-3300-0787 (12-Axis)
- A20B-3300-0442 or A20B-3300-0782 (16-Axis)
FROM/SRAM Module Options
- A20B-3900-0163, A20B-3900-0223, A20B-3900-0283, or A20B-3900-0297 (FROM 32MB/ SRAM 1MB)
- A20B-3900-0164, A20B-3900-0224, A20B-3900-0284, or A20B-3900-0298 (FROM 32MB/ SRAM 2MB)
- A20B-3900-0165, A20B-3900-0225, A20B-3900-0285, or A20B-3900-0299 (FROM 32MB/ SRAM 3MB)
- A20B-3900-0166, A20B-3900-0226, or A20B-3900-0286 (FROM 64MB/ SRAM 1MB)
- A20B-3900-0167, A20B-3900-0227, or A20B-3900-0287 (FROM 64MB/ SRAM 2MB)
- A20B-3900-0228 or A20B-3900-0288 (FROM 64MB/ SRAM 3MB)
Other Related Parts:
- 2-Slot Backplane: A05B-2500-C001
- 4-Slot Backplane: A05B-2500-C002
- Power Supply Unit: A16B-2203-0910
- DeviceNet PCB: A16B-2203-0930
See R-30iA Main PCB Card & Module Reference Guide for more information
