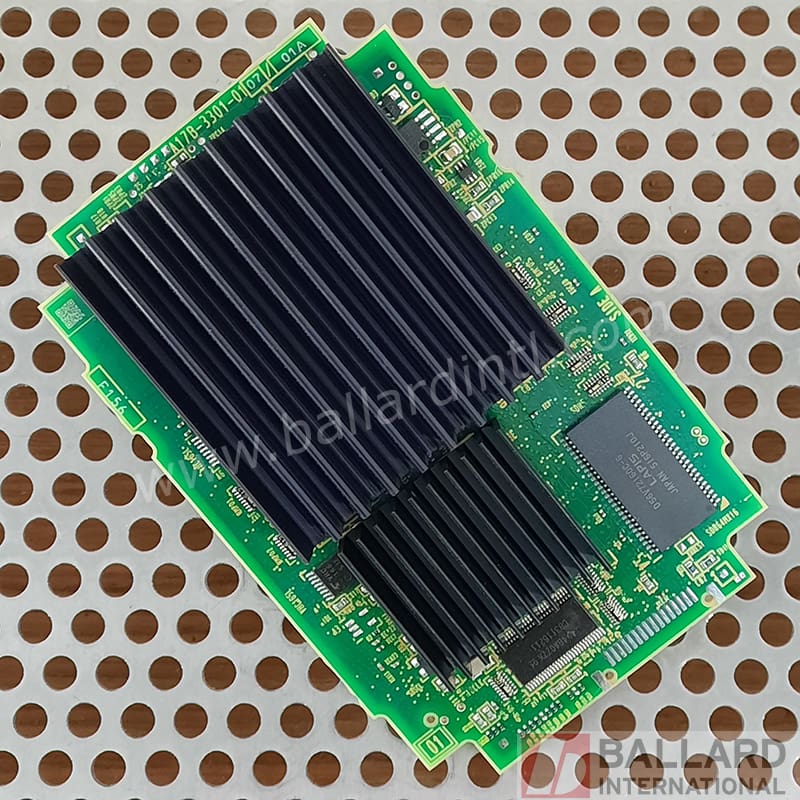

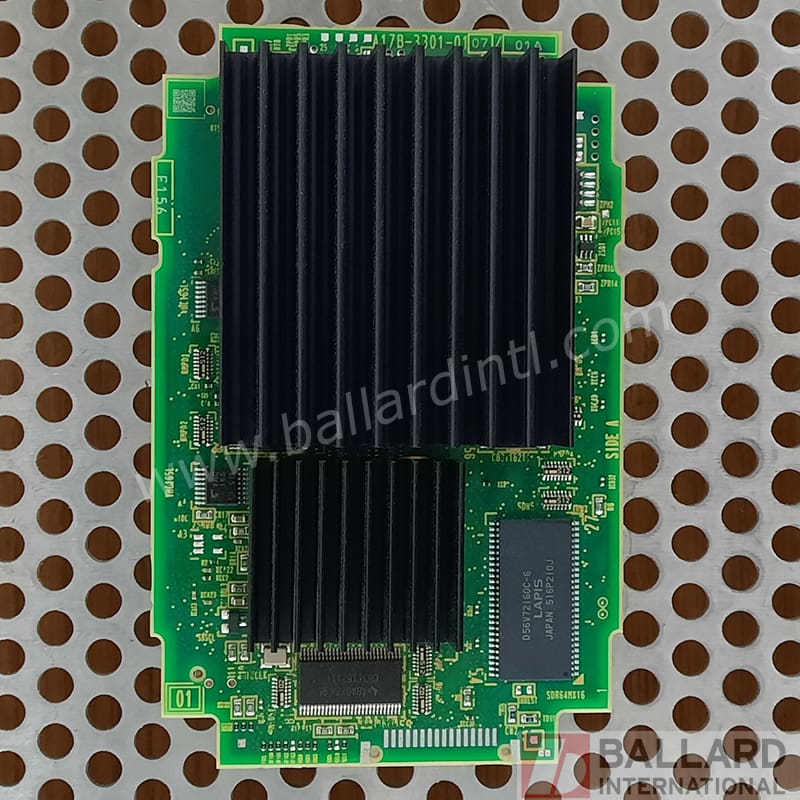

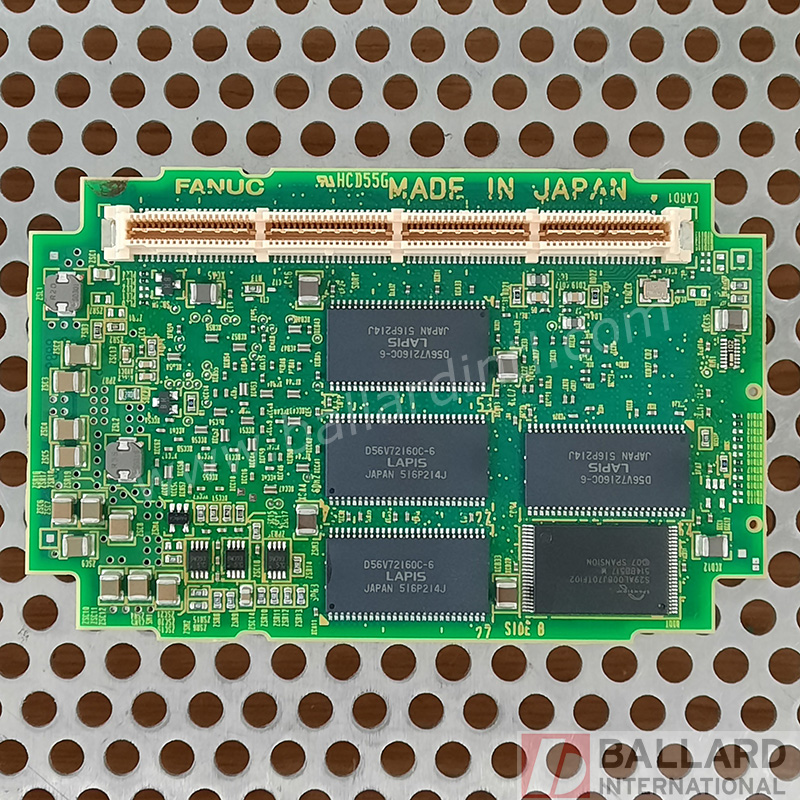

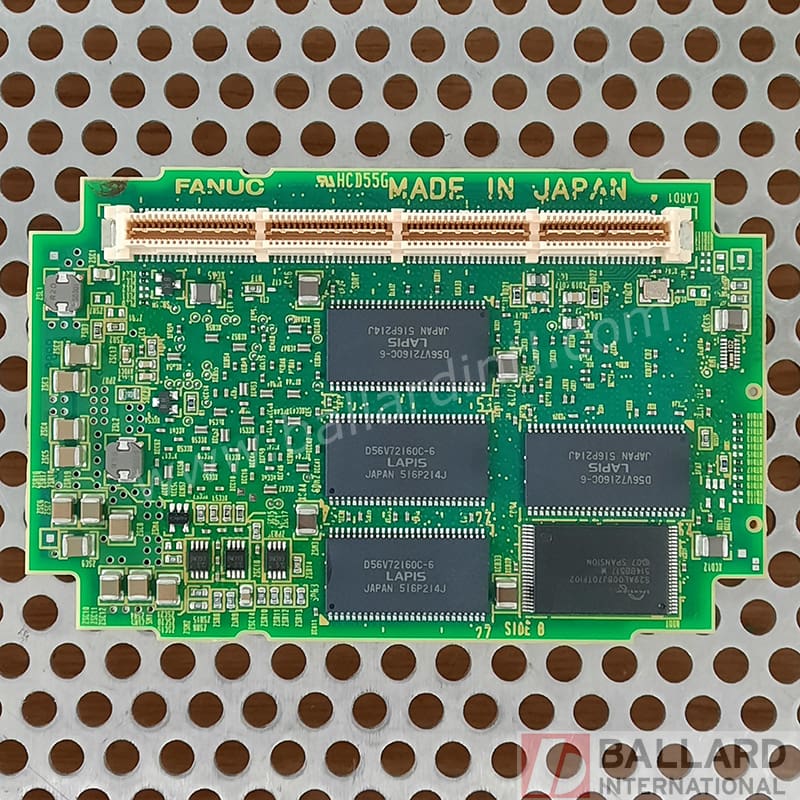

FANUC A17B-3301-0107/A05B-2600-H021 CPU Card SDRAM 64MB – R30iB

• This CPU card is an option that may be installed horizontally to the main PCB for Fanuc R-30iB Controllers:
  • A16B-3200-0730 or A16B-3200-0780 (R-30iB, Standard Option)
  • A16B-3200-0731 or A16B-3200-0781 (R-30iB, Force Sensor Option)
  • A20B-8200-0790 (R-30iB Mate, Standard Option)
  • A20B-8200-0791 (R-30iB Mate, Force Sensor Option)
• SDRAM 64MB
• See “Related Parts” for additional CPU card options
• Alternative Part #s: A05B-2600-H021, A20B-3300-0687

CONDITION: USED

Related Parts

Additional CPU Card Options – R-30iB:
A20B-3300-0686 or A17B-3301-0106 (SDRAM 32MB)
A20B-3300-0687 (SDRAM 64MB)
A20B-3300-0688 or A17B-3301-0108 (SDRAM 128MB)

R-30iB Main Boards:
A16B-3200-0730 or A16B-3200-0780 (Standard Option)
A16B-3200-0731 or A16B-3200-0781 (Force Sensor Option)
A16B-3200-0732 or A16B-3200-0782 (Force sensor, High Speed Option)

See R-30iB Main PCB Card & Module Reference Guide for more information

R-30iB Mate Main Boards:
A20B-8200-0790 (Standard Option)
A20B-8200-0791 (Force Sensor Option)
A20B-8200-0792 (Force Sensor, PMC, HDI Option)
A20B-8201-0420 (Standard, 1Ch, I/O Link Option)
A20B-8201-0421 (Force Sensor, 2Ch, Vision I/F, I/O Link Option)
A20B-8201-0422 (Force Sensor, 2Ch, Vision I/F, PMC, HDI I/O Link Option)

See R-30iB Mate Main PCB Card & Module Reference Guide for more information

1.4.6
